[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer Latest HW Version 3.7, 9KHz -1.5GHz Antenna Analyzer with 32GB SD Card Support Data Storage, Measuring S Parameters, SWR, Phase, Delay, Smith Chart

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• [With 32GB SD Card Support Data Storage] Build-in SD card slot and with the 32GB SD card for data transfer and storage, solved the issue on saving the onsite data. You could take the nanovn-h with you at anywhere and anytime
• [UPGRADED NanoVNA-H HW3.7] AURSINC NanoVNA-H is developed by Hugen, tiny and portable. With lastest 3.7 version, 2.8 inch LCD(320 x240) touchscreen, built in 650mAh battery. Added a ABS case, which is protective and dust-proof. This Antenna Analyzer is a useful tool to test out antennas and shows you what band is the antenna is cut for. It is a handheld and smart analyzer for electronics engineer, amateur radio operators or radio amateurs
• [IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics
• [MULTIPLE TX/RX FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. The CH0 output level is increased to 0dBm when using the fundamental wave, resulting in more accurate reflection measurement
• [SUPPORT ANDROID PHONE & PC SOFTSARE CONTROL] The nanovna analyzer is compatible with most Android mobile phones and supports windows computer control. Designed a practical control application on PC (NanoVNASaver), can download touchstone(SNP) files for radio design and simulation software. Redesigned PCB, you can connect nanovna to mobile phone with Type C-Type C cable. Supports time domain analysis function (TDR)

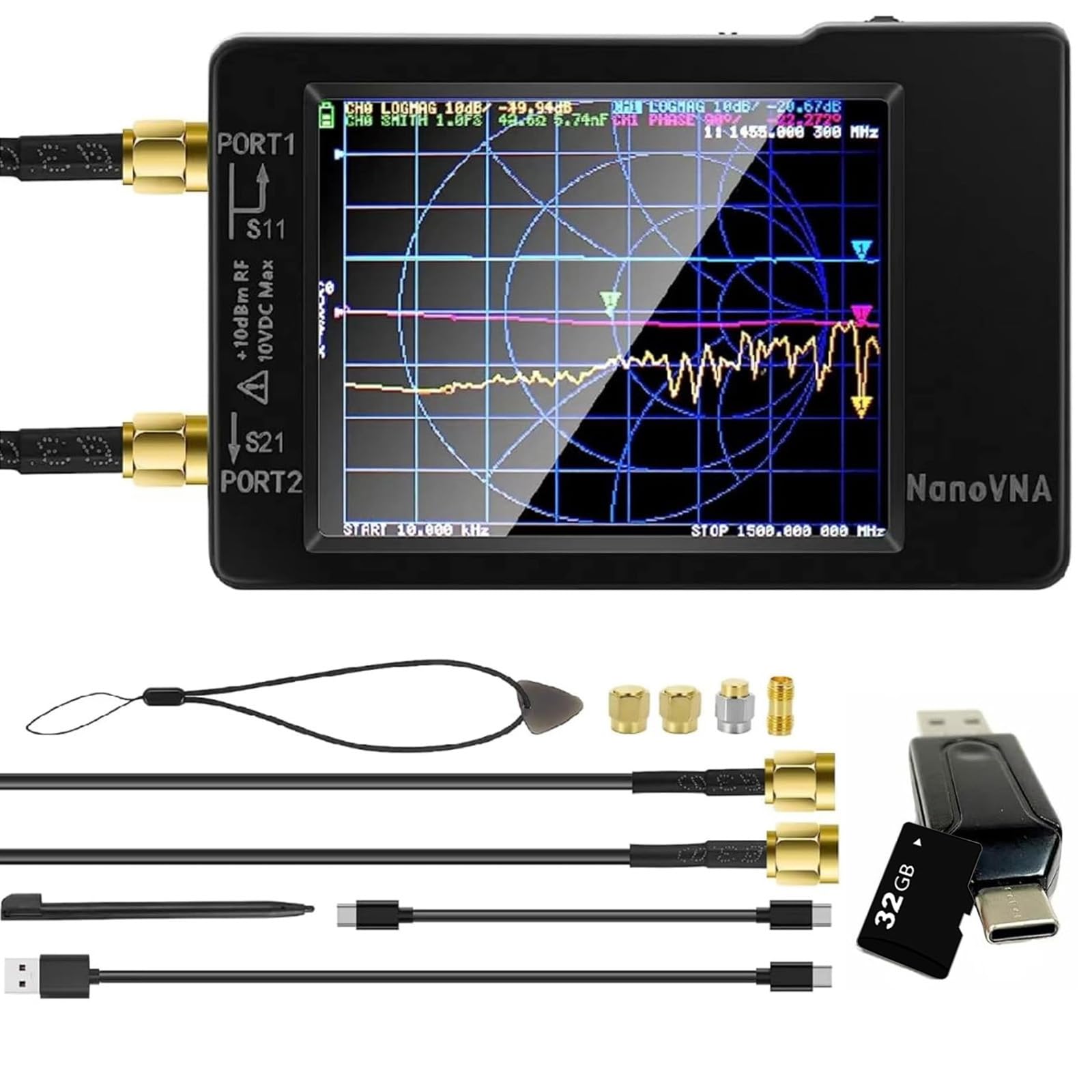

• [PACKAGE LIST] 1x NanoVNA H host(2.8inch touchscreen, 650mAh), 2x 30cm SMA male to male RG174 RF cable, 1x USB Type-C data cable, 4pcs SMA simple calibration kit (open/short/load/ SMA female to female connector), 1x USB TypeC-TypeC Line, 1x Touch plectrum, 1x Stylus pen. NOTE: Our nanovna is only compatible with low-speed and supports SPI mode SD card for now
