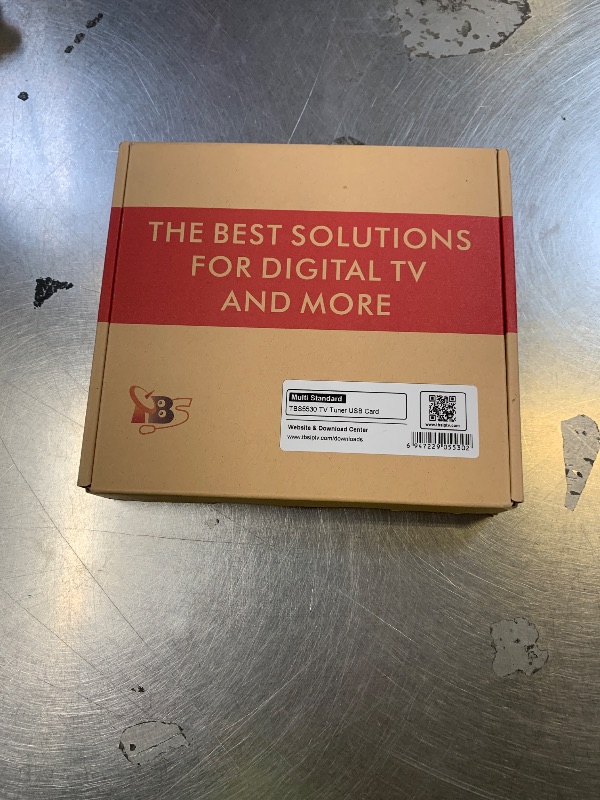

TBS 5530 DVB-S2X DVB-S2 DVB-T2 DVB-C2 ISDB-T ATSC1.0 Digital TV Tuner USB Box for Live TV/ Window/ Linux/ IPTV Server

DVB-S/S2 QPSK:1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK:3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK:2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK:3/4, 4/5, 5/6, 8/9, 9/10 DVB-S2X QPSK: 1/4,1/3, 2/5 (S2-MODCODs) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 8/9, 9/10 (S2-MODCODs) 11/45, 4/15, 14/45, 7/15 8/15, 32/45 8PSK (8APSK-L): 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) 7/15, 8/15, 26/45, 32/45 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) 7/15, 8/15, 26/45, 3/5, 32/45 32APSK(32APSK-L): 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs) 32/45 ,11/15,7/9 ,(2/3) VCM: Yes Symbol rate: 1 ~ 45Msymb/s DVB-T2 and T2-Lite Receiving channel: VHF band, UHF band Bandwidth: 1.7, 5, 6, 7, 8MHz FFT mode: 1K, 2K, 4K, 8K, 16K, 32K 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals 16, 32, 64, 128 and 256QAM modulations Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 DVB-T: 6, 7 and 8MHz channel bandwidths 2 and 8K FFT QPSK, 16 and 64QAM 1/2, 2/3, 3/4, 5/6 and 7/8 code rates DVB-C2: 6 and 8MHz channel bandwidths 1/64 and 1/128 guard intervals 16, 64, 256, 1024, 4096 QAM 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates DVB-C 1.7 to 7.2 Msym/s 16, 32, 64, 128 and 256QAM 0.15 roll-off factor ISDB-T 6, 7 and 8MHz bandwidth 2, 4 and 8K FFT 1/32, 1/16, 1/8 and 1/4 guard intervals QPSK, 16QAM and 64QAM ISDB-C 5.274 Msym/s 0.13 roll-off factor 64 and 256QAM TSMF (Transport Streams Multiplexing Frame) J.83B (ITU-T J.83 v3.0 Annex B) 5.056941, 5.360537, 5.6 Msym/s 0.18 and 0.12 roll-off factor 64 and 256QAM ATSC1.0 6MHz channel bandwidths 8VSB modulation 2/3 code rate Power consumption Input/ Power: 5V/5W temperature: 0 ~ 60℃ System Requirements: Windows XP / Vista/ 7/8/10, Linux Package Contents 1 x TBS5530 1 x USB cable 1 x F-IEC
