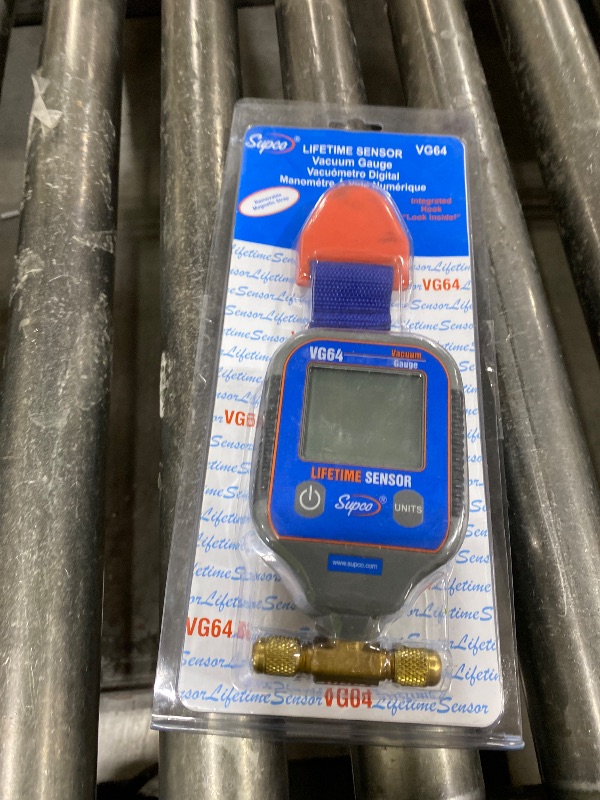

Supco VG64 Vacuum Gauge, Digital Display, 0-12000 microns Range, 10% Accuracy, 1/4" Male Flare Fitting Connection

The Supco VG64 vacuum gauge has an LCD digital, backlit display of 0 to 12,000 micron (0 to 1,600 Pascals) range, 0.5 to 1,000 micron resolution, 1,000 micron graduation, a programmable, audible, and visual alarm for high and low vacuum, and a 1/2-second response time. A vacuum gauge measures vacuum pressure in a wide variety of test, inspection, and measurement applications in the automotive, pharmaceutical, chemical, food and beverage, and petrochemical industries. The VG64 measures vacuum in seven international units including micron, milliBar, Pascal, Torr, psi, InHg, and milliTorr. It has a built-in hanging apparatus for maneuverability. A thermistor sensor provides accurate readings, and an accessible cleaning port provides quick cleaning and sensor drying. The VG64 has a low battery indicator, and works with a 9V battery (not included) for 600 hours of continuous operation. It has a one-year. Specifications Sensor type Thermistor Connector type Standard, 1/4-inch male flare fitting Vacuum range 0 to 12,000 Microns (0 to 1,600 Pascal) Resolution 0 to 200: 1 Micron; 201 to 500: 5 Microns; 501 to 1,000: 10 Microns; 1,001 to 2,000: 50 Microns; 2001 to 5,000: 250 Microns; 5,001 to 8,000: 500 Microns; 8,001 to 12,000: 1000 Microns Accuracy + or - 10%, or + or - 10 Micron; whichever is larger (50 to 2000 Microns) at 75 degrees F Update rate 0.5 seconds Alarm volume 87 decibels (dB) Operating temperature range 35 to 125 degrees F (2 degrees C to 52 degrees C) Overpressure 500 PSI maximum (20 Bar) Dimensions 5.5 x 3.0 x 1.25 inches (H x W x D) Weight 6.7 ounces H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back. A vacuum gauge measures vacuum pressure in a wide variety of test, inspection and measurement applications in the automotive, pharmaceutical, chemical, food and beverage, and petrochemical industries. Vacuum gauges can have analog or digital displays, and express a variety of units such as Microns, Pascal, and PSI. Sealed Unit Parts Co. (SUPCO), Inc. manufactures precision electronic and test instruments, and replacement parts for the heating, ventilation, air-conditioning, and refrigeration (HVAC) industries. SUPCO is headquartered in Allenwood, NJ, and has been in operation since 1945. What’s in the Box? VG64 Vacuum gauge Instructions
