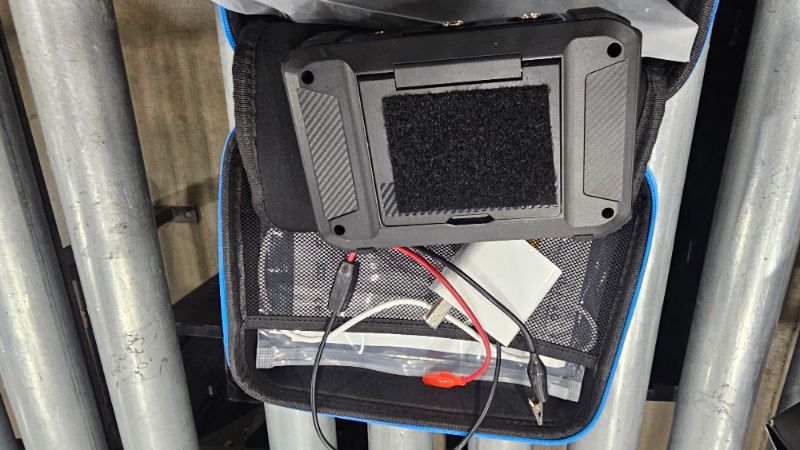

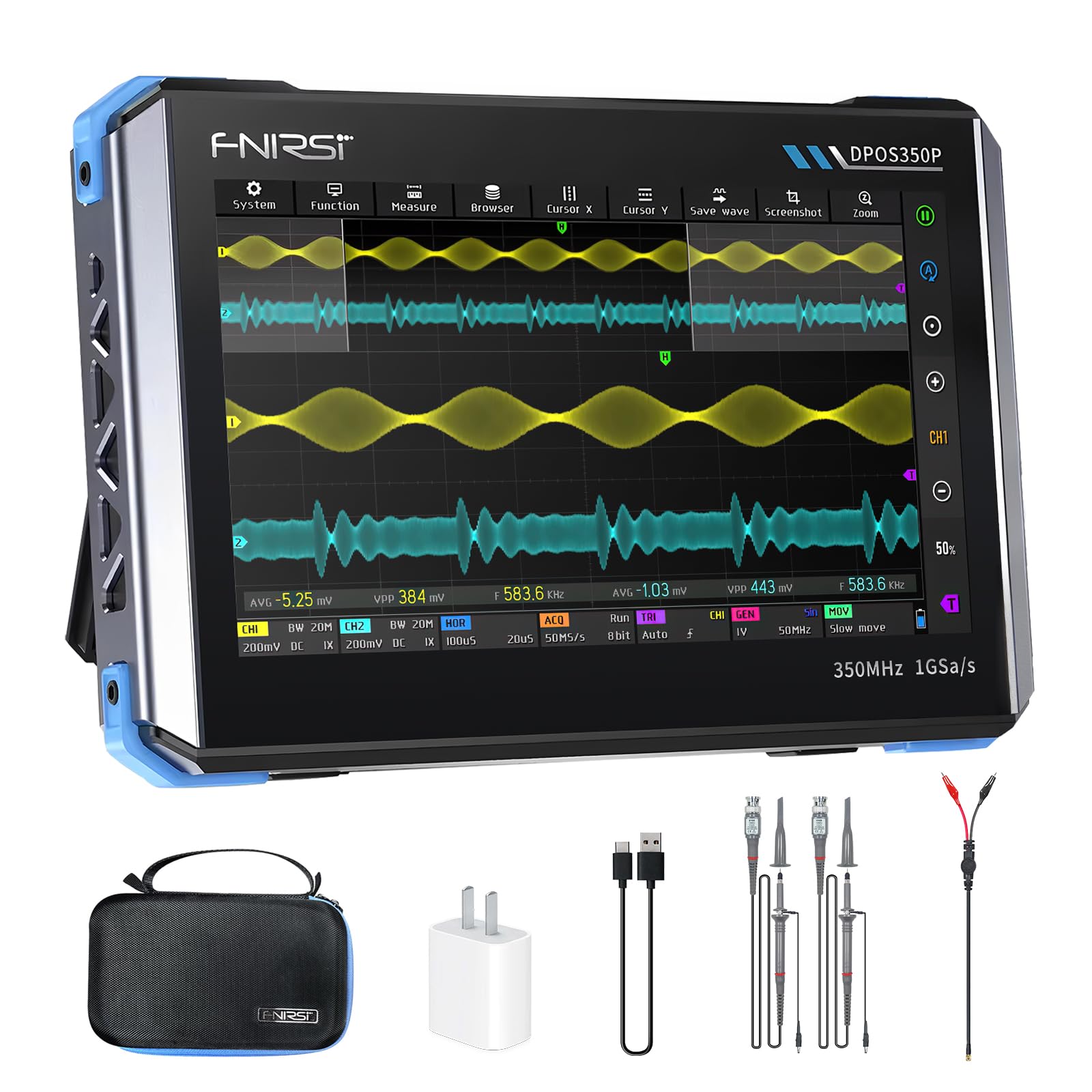

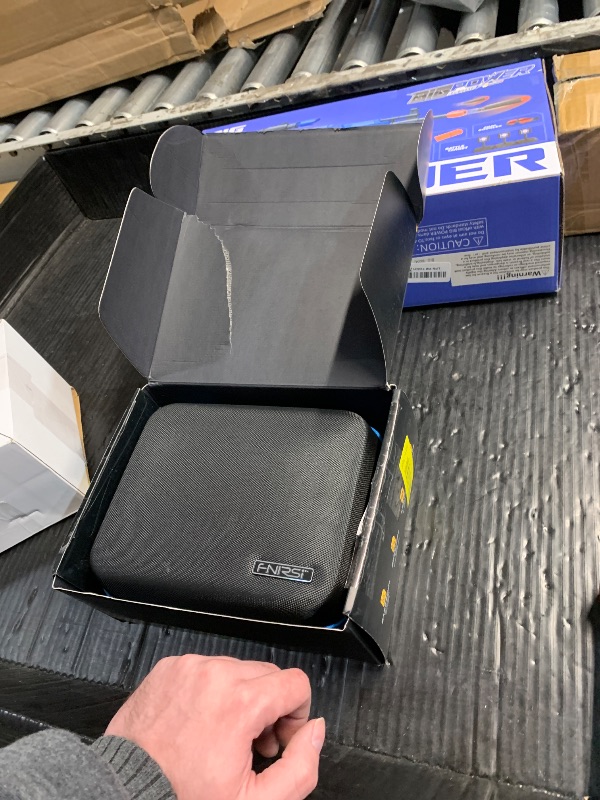

***PARTS ONLY***FNRSI DPOS350P 4-in-1 Oscilloscope, 350MHz Digital Phosphor Scope + 50MHz Signal Generator + 350MHz Spectrum Analyzer + 50MHz FRA, 1GSa/s, 7" Touchscreen, Portable Lab Analyzer with Fast Charging

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【All-in-One Professional Tool】Combines a **350MHz digital phosphor oscilloscope** (1GSa/s sampling, 50,000 wfm/s refresh), **50MHz signal generator** (14 waveforms + custom), **350MHz spectrum analyzer** (FFT/3D waterfall), and **50MHz frequency response analyzer** – perfect for labs, production, and field diagnostics. .
• 【350MHz Digital Phosphor Oscilloscope】 Dual-channel scope with **1GSa/s real-time sampling**, **50,000 wfm/s refresh rate**, and **1ns rise time** captures elusive signal anomalies. Features **8-bit to 16-bit high-res mode**, 400V overvoltage protection, and XY/Zoom/Roll modes for precision debugging. .
• 【50MHz Arbitrary Waveform Generator】Output **14 standard waveforms + custom signals** (500 storage slots) up to **50MHz (sine)/10MHz (square)**. Adjust amplitude (**0-5Vpp**), offset (**±2.5V**), and duty cycle (**0.1%-99.9%**) at **1mV/1Hz resolution** for versatile stimulus. .
• 【350MHz Spectrum Analyzer】 **200kHz-350MHz FFT analysis** with **32K points**, **3D waterfall display**, and **-60dBmV to +260dBmV** dynamic range. Ideal for EMI/RF troubleshooting with max harmonic marker and auto-calibration. .
• 【50MHz Frequency Response Analyzer】Perform sweep tests (**100Hz-50MHz**) with **20-500 excitation points**. Measure gain/phase response for filters, amplifiers, or system validation via cursor tracking. .
• 【Precision Signal Capture】Ultra-high **350MHz analog bandwidth** and **1ns rise time** detect low-probability anomalies, while **8-16bit high-res mode**, adjustable grayscale, and **50,000 wfm/s refresh rate** ensure crystal-clear waveform visualization. .
• 【Advanced Analysis & Generation】 Generate complex signals via the **50MHz generator** (0-5VPP amplitude, ±2.5V offset) and analyze RF/EMI with the **200kHz-350MHz spectrum analyzer**, featuring 3D waterfall displays and auto-calibration. .
• 【Intuitive 7" Touchscreen Operation】High-res **1024×600 IPS display** supports touch controls, color temperature adjustment, and stores **500 waveforms + 90 screenshots**. Includes one-key auto-adjust, zoom, and XY mode for streamlined testing.
