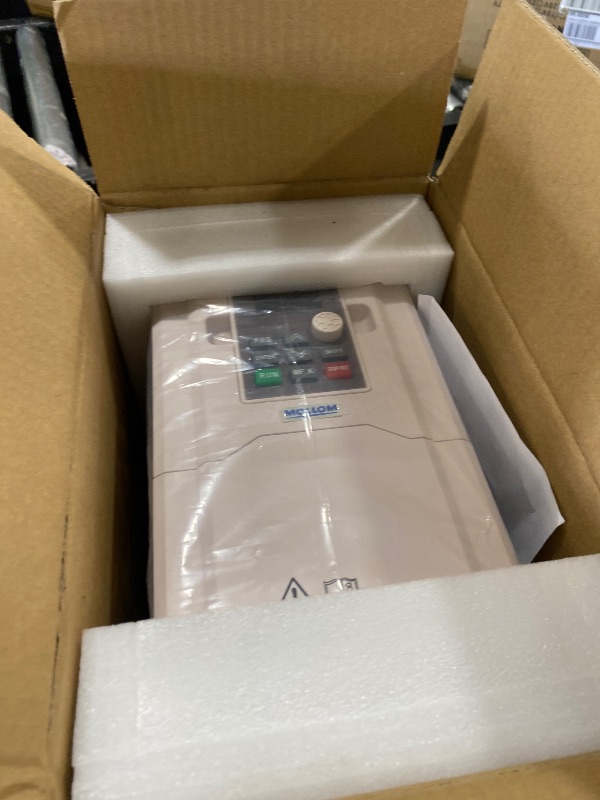

MOLLOM VFD 11KW 15HP 25A 380V Single or Three Phase Input to 3 Phase 0-3000 Hz Output Variable Frequency Drive Inverter for Spindle Motor CNC Speed Control

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【High Performance】Power: 11kw; Input voltage: AC 380V(±15%); Output voltage: AC 380V; Input frequency: 50/60 Hz; Output frequency: 0-3000 Hz; Input phase: Both Support Single or Three phase; Output phase: three-phase
• 【Feature】Rich of digital and analogy control terminals for versitile control ，RS485 communication port, adopting standard international MODBUS main circuit control.With extremely strong anti-jamming capability, safe for you to use
• 【Smart Digital Display】 Adopting user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control
• 【Application Motor】CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines
• 【Importent Note】 This VFD surpport external resistor. If your motor is heavy load, pls choose a higher power level VFD or contact sales for model selection suggestion.**The working environment is relatively humid, with water mist, water droplets or metal objects falling in, which will cause a short circuit
• ***Single power supply can be connected to any two terminals of R,S,T. It is necessary to set the parameter F9.12=00, otherwise it will report an error and can't work. The frequency converter needs to be directly connected to the motor, and the start and stop of the motor must be controlled by the frequency converter, otherwise the frequency converter will be damaged
