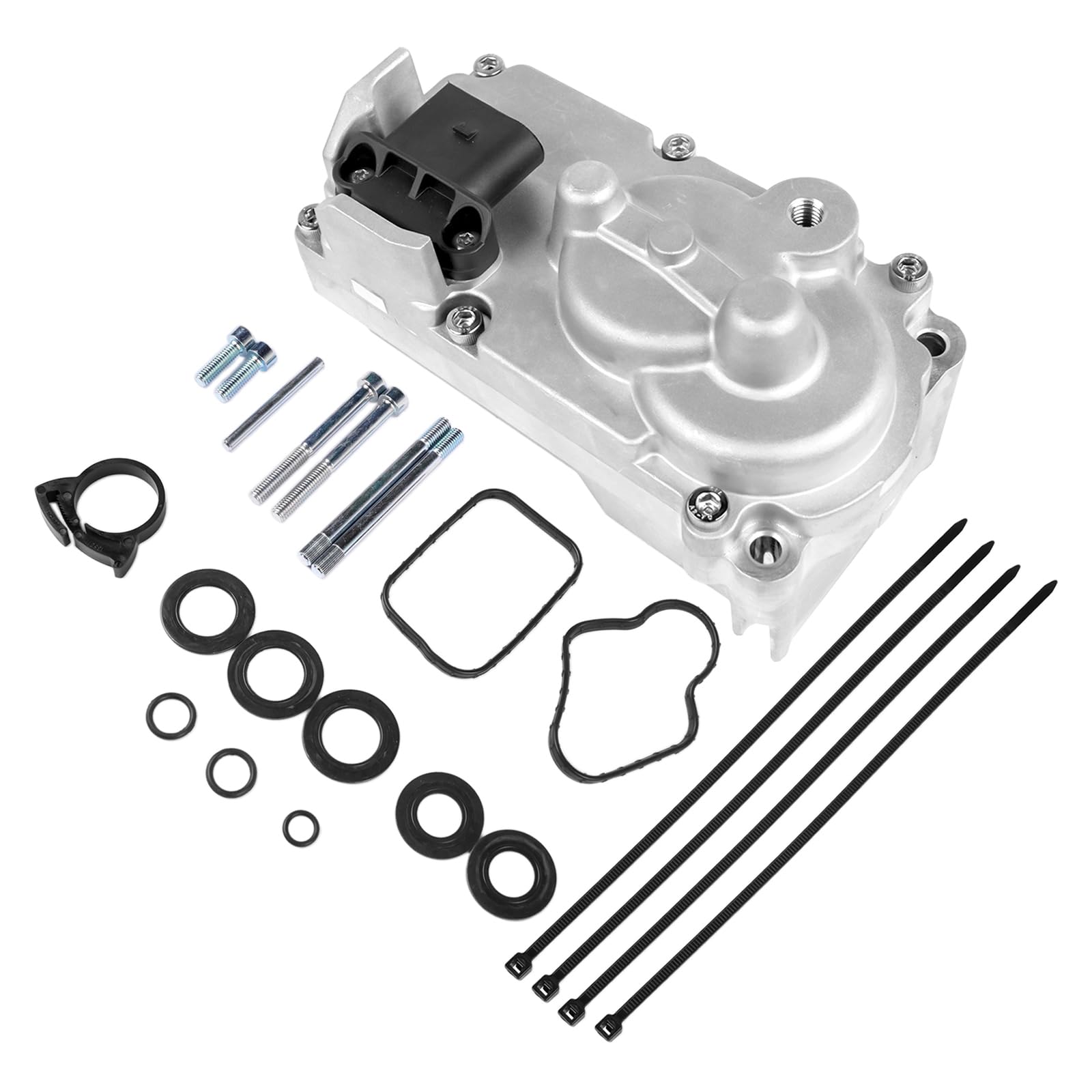

****MISSING ASSEMBLY PIECES**** Flynsu 6382093RX Turbo Actuator Replacement for 2017- Cummins X15 Holset HE400VG VGT Turbo Actuator 6374772RX 5501185RX

Part Number 4034188, 4034429, 4034429RX 5355124, 5355724, 5356525, 5452695 5501185, 5501185H, 5501185HX, 5501185NX, 5501185RX, 550118500H, 550118500HX 6374772, 6374772RX 6382093, 6382093H, 6382093HX, 6382093RX 06318455, 6318455 Turbo Model(s): HE400VG, HE300VG, HE351VE 12V Turbocharger Actuator Replacement for Cummins X15, X12, ISX VGT Turbo 2017-2019 Installation Instructions • 1. Power on VGTA • 2. Disconnect power • 3. Remove 4 screws and then remove VGTA • 4. Confirm the gears are in the pre-install position • 5. Prior to installing an actuator onto a turbocharger, assure that the turbo sector gear is in the pre-position to mesh with the pre-aligned actuator drive gear. • 6. Actuator’s pre-installation process should be conducted electronically (see service tool instructions) Service Tool – Step 1: Clear VGTA calibration. Before installing an actuator on a turbocharger, the actuator’s span (0% and 100% position) calibration must be cleared. (Cal change, no gear movement) – Step 2: Reset VGTA position to the factory default (or manually turn the drive gear mark facing 225 degree). Must complete the step 2 before installing a VGTA on a turbocharger – Step 3: Recalibrate VGTA. After installing a VGTA on a turbocharger, command VGTA to learn the span information of the turbocharger and save this distance information in the VGTA’s firmware. Practice and understand the 3-step service tool process before installing a VGTA on a turbocharger. No service tool needed if reinstall the VGTA on the same turbo, but must confirm that the turbo gear is in the install position to mesh with the pre-aligned actuator gear (225 degree) in case it has been manually changed
