Little Giant 9SF2V2D Pit Plus SR Sewage Basin System with 115-Volt, 4/10 HP, 6000 GPH 9SC-CIM Sewage Pump and 20-Ft. Cord, Green/Blue/Black, 509661

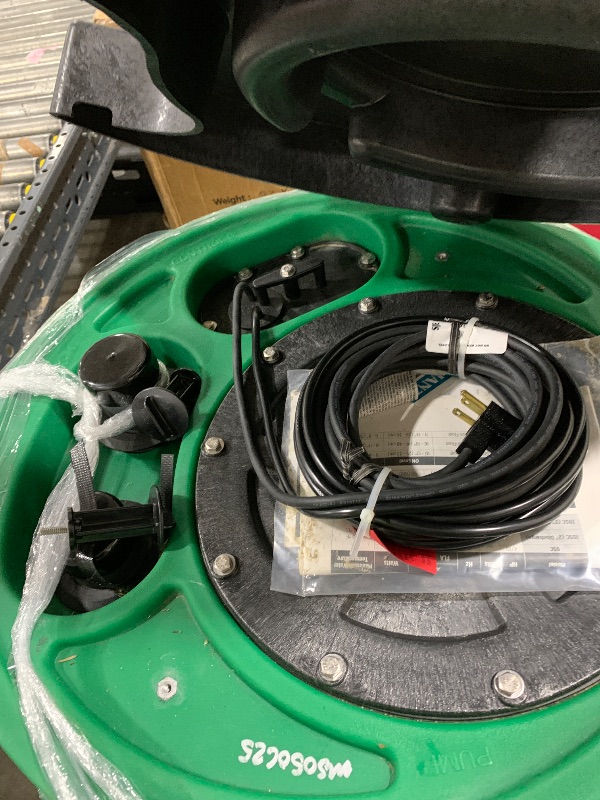

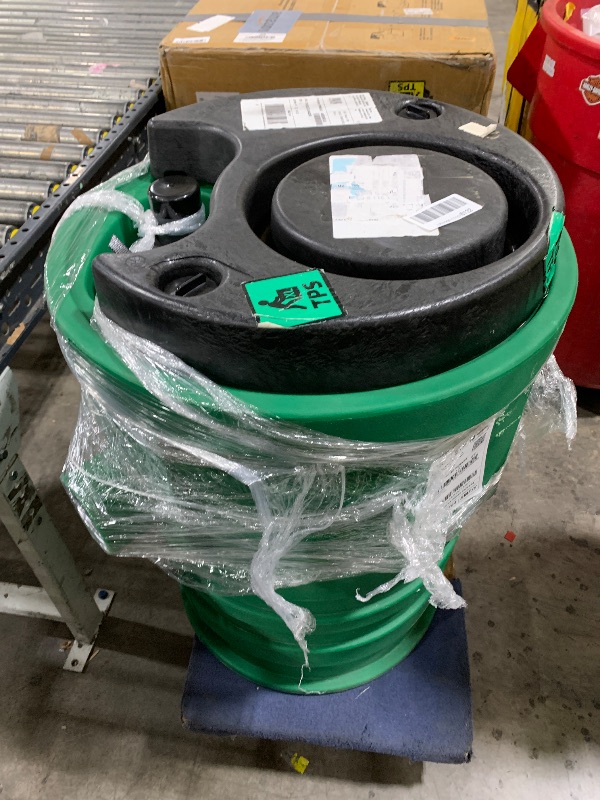

Photo 1 of Little Giant 9SF2V2D Pit Plus SR Sewage Basin System with 115-Volt, 4/10 HP, 6000 GPH 9SC-CIM Sewage Pump and 20-Ft. Cord, Green/Blue/Black, 509661

1/3

2/3

3/3

Time Left

CURRENT PRICE

Description

Little Giant's preassembled Pit Plus SR includes a 4/10 HP submersible sewage/effluent pump with basin and float switch. The basin features a radial rib design for added strength, 360° molded handle; integrated anti-floatation collar; and recessed discharge and vent location. The 9SC-CIM pump delivers 6000 GPH at 5-ft. lift; comes with a 2-inch discharge and a 20-ft. cord. The system also includes a piggy-back mechanical float switch and float tree. Also included is a 19" x 2" MNPT discharge pipe with quick disconnect coupling and 6"x2.38" vent pipe. Please note: this product does not come with a check valve. This pump is equipped with an air bleed hole which prevents the pump from being airlocked and allowing trapped air to escape. A large volume of water will spray from the pump. The pump is NOT DEFECTIVE. This is normal operation and does not affect the performance of the pump.

Item Details

Seller

Nellis Auction

Pickup Location

4031 Market Center Dr Suite 303

North Las Vegas, NV, 89030

Quality

Used

Functional

Minor Damage

No Assembly Needed

Not In Package

No Missing Parts

Auction closes

Estimated Retail Price

$945.60

Buyers Premium

15%

Inventory Number

1068489682

Found in

Home Improvement Plumbing

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

brand

Little Giant

color

Green/Blue/Black

size

20" x 30"

dimensions

{"package":{"width":584,"weight":31298,"length":825,"height":584},"item":{"weight":30391,"height":330,"length":203,"width":203}}

weight

67.00 lbs

More features

ALL-IN-ONE SEWAGE BASIN SYSTEM: includes 20"x30" Pit+Plus SR basin/lid, sewage pump, one 2" MNPT discharge pipe with quick disconnect coupling, one 6" x 2.38" vent pipe; piggyback float switch/tree
SEWAGE PUMP INCLUDED: Little Giant's energy-efficient 9SC-CIM 4/10 HP cast iron sewage pump delivers 6000 GPH, is equipped with a 2-inch FNPT discharge, and comes with a 20-ft. cord
PIT+PLUS SR BASIN FEATURES: recessed discharge and vent location; monolithic molded basin top; independent recessed switch module; independent pump access cover; durable finish cover
MOTOR SPECIFICATION: 4/10 HP; 115-Volt, 60 Hz Permanent Split Capacitor (PSC) motor designed for continuous duty; 8 running Amps; 870 Watts
PUMP SPECIFICATIONS: 6000 GPH at 5-ft. lift; 20-ft. shut-off; maximum 8.7 PSI; 2" discharge; manual operation (switch included seperately); 20-ft. cord; epoxy-coated cast iron cover/housing/volute
