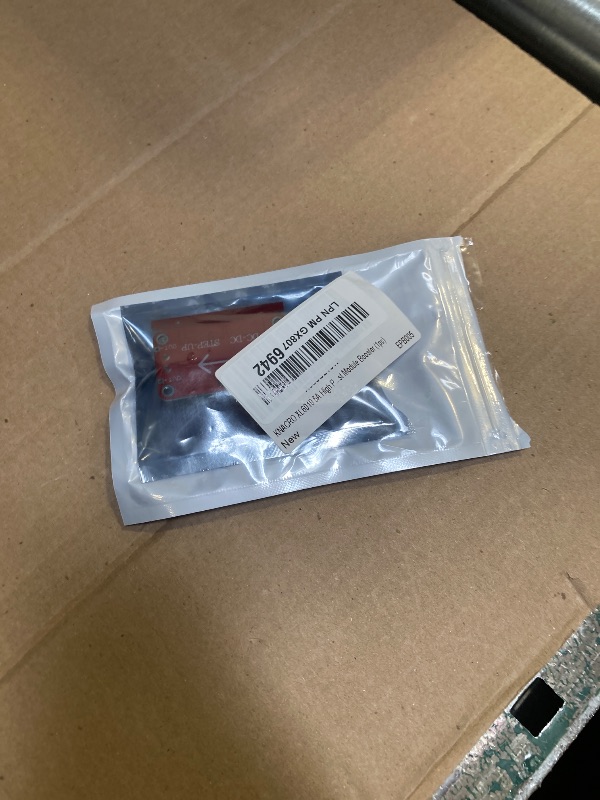

KNACRO XL6019 5A High Power Current DC to DC Step-up 5V 6V 12V 24V 3-35V to 5-40V XL6019 Converter Adjustable Voltage Regulator Power Modules Boost Module Booster (1pc)

MS + -> Positive; IN ---> Negative; OUT + -> Positive; OUT ---> Negative Input Voltage: DC 3-35 V(40V MAX) Output Voltage: DC 5-40V ( 45V MAX Adjustable) Input Current: 5A (MAX) Conversion efficiency: 94% (MAX) Output ripple: 100mv (MAX) Switching Frequency: 220 kHZ Working Temperature: Industrial (-40 ° C to + 85 ° C) Voltage regulation: ± 0.5% Load regulation: ± 0.5% Instructions Input and Output must be connected correctly Conventional Constant Voltage Output BOOST Fully Integrated Solutions, Integrated MOSFET, Fewer External Components, Smaller Cos System Built-in over temperature protection, full set overcurrent protection circuit reliability, high reliability TO263-5L standard package, suitable for 30W boost inside applications. Power (3-35 V), power indicator light, module is working properly. Adjust the blue knob of the potentiometer (counterclockwise general impulse, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage NOTE: Long hours working current is recommended for use at less than 2.5 M, while adding heatsink mass (10 W output above); Because it is boosting the module, in order to ensure stable output, please keep the minimum differential 1.5 V. Package： * XL6019 5A Current DC to DC Adjustable Boost Power Supply Board Module
