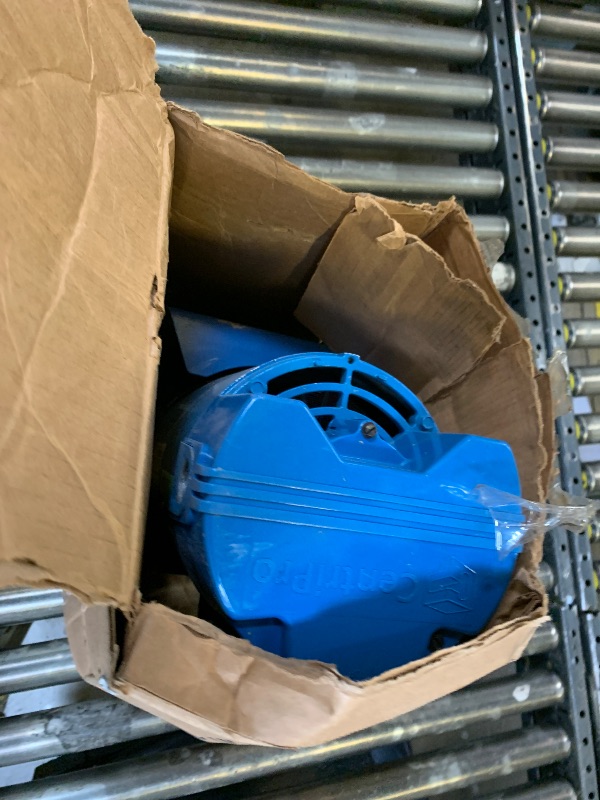

GOULDS Pumps GT15 IRRI-Gator Self-Priming Single Phase Centrifugal Pump, 1.5 hp, Blue

Gould's GT15 Self-Priming Design Once pump is initially primed, filled with water, it will reprise when the water level rises above the end of the suction pipe. Back pullout design allows disassembly of pump for service without disturbing piping. Two compartment motor for easy access to motor wiring and replaceable components. The Bolt down diffuser provides positive alignment with impeller. Diffuser has stainless wear ring for extended performance in abrasive conditions. F.D.A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance. Impeller: F.D.A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Corrosion Resistant: Electro-coat paint process is applied inside and out, then baked on. Casing: Cast iron construction. Four (4) bolt, back pull-out design. Tapped openings provided for vacuum gauge and casing drain. Powered for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage. Mechanical Seal: Carbon/ceramic faces, BUNA elastomers. 300 series stainless steel metal parts. Pump design prevents the seal from running dry. APPLICATIONS: Specifically designed for the following uses: Lawn sprinkling • Irrigation • Air conditioning systems • Heat pumps • Water transfer • Dewatering GENERAL GT SERIES SPECIFICATIONS Pump: • Pipe connections: 1½" NPT suction 1½" NPT discharge • Capacities: to 110 GPM at 5 foot suction lift • Heads: to 128 feet • Reprise capabilities: to 25 feet suction lift • Maximum working pressure: 125 PSIG • Maximum water temperature: 140° F (60° C) • Rotation: clockwise when viewed from motor end. Motor: • NEMA standard open drip proof • 60 Hz, 3500 RPM • Stainless steel shaft • Single phase: ¾-1½ HP, 115/230 V; 2 and 3 HP, 230 V only. Built-in overload with automatic reset.
