FLIPSKY Dual FSESC 4.20 Plus (Based on ESC) with Anti-Spark Switch Integrated Anodized Aluminum Heatsink Skateboard Electric Speed Controller E-Bike Longboards Skateboarding DIY ESC

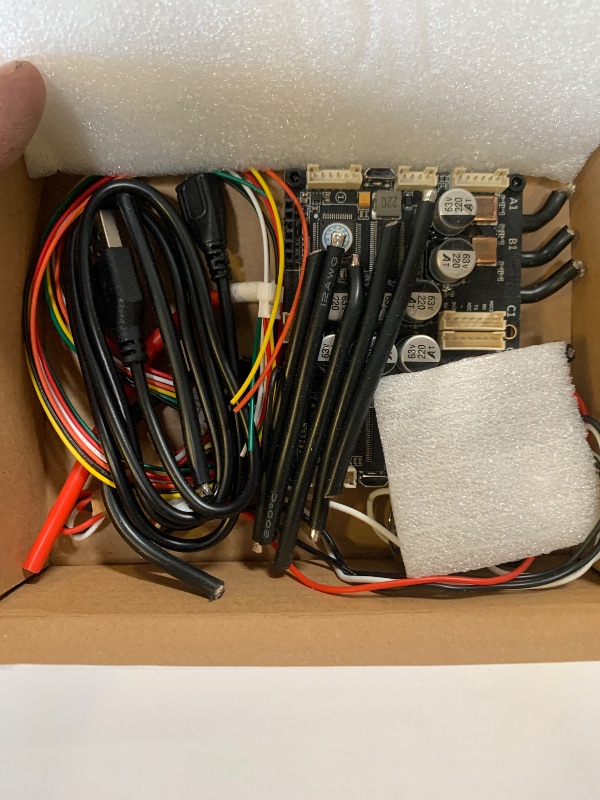

You can connect your ESC to your computer and modify them using the ESC BLDC Tool. Our ESC ships to you tested multiple times during the production cycle and are ready to use. The ESC will provide optimum performance when configured for your particular motor and battery voltage. The Flipsky ESC allows you to use sensorless motors to achieve smooth start-up from a stop versus traditional RC ESC's which may have trouble starting from a complete stop. It also provides strong. reliable and progressive electric braking. Advanced Features: Hardware:V4.20 ERPM:60000 Firmware:3.40 (Keep upgrading if FW is updated) Current:50A continuous/single, 100A continuous/dual ,burst 150A/single, burst 300A/dual Voltage: 8V-60V (Cells: 3-13S LiPo) BEC: 5V@1.5A BEC type: Internal driver support Modes: DC, BLDC, FOC (sinusoidal) Timing: Software calibration Cutoff Voltage: Programmable Frequency: PWM input Programming card: No Reverse: Yes Regenerative braking power: Yes The shipping package contains: 1*Dual FSESC4.20 Plus + Heatsink 2*FSESC Sensor Wires 1*Micro USB 1*Manual 1*16mm LED button If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours NOTE:Integrated anti-spark switch function in the PCBA (Reminds : the LED button is defaultly inserted in the switch in shipping status. DO NOT power on switch without the LED button connected). DIY an electric skateboard is really complex, all the lines must be correct, the current and voltage should not be too large. In addition, if it can not be used normally, please record a problem video to us before returning it, and we will solve the problem for you in the first time.
