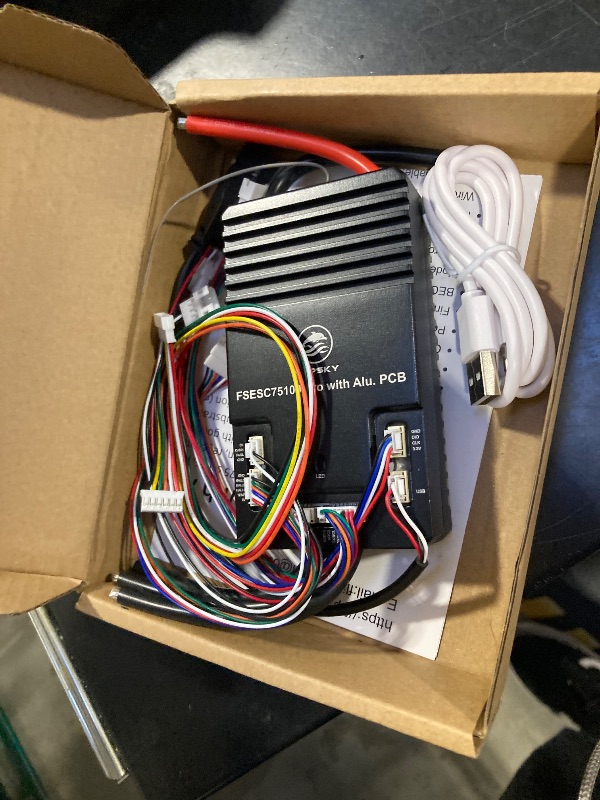

FLIPSKY 75100 Pro with Aluminum PCB Based on VESC for Electric Skateboard/Scooter/Ebike Speed Controller

Warm tips:It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC. Please be careful to limit the Absolute Maximum Current below 250A,setting page Specs: 75100 Pro Size: L103mm*W58mm*H27.7mm Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABI，HALL，AS5047，AS5048A Input Set Support:PPM，ADC，NRF,UART Wire Size: 10AWG(75100 Pro) Programmable: Yes Regenerative Capacity: Yes Newly upgraded: Change connection wires from 12Awg to 10Awag. More sensitive temperature detection function Integrated bluetooth module design Size & design upgraded Warm tips: Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
