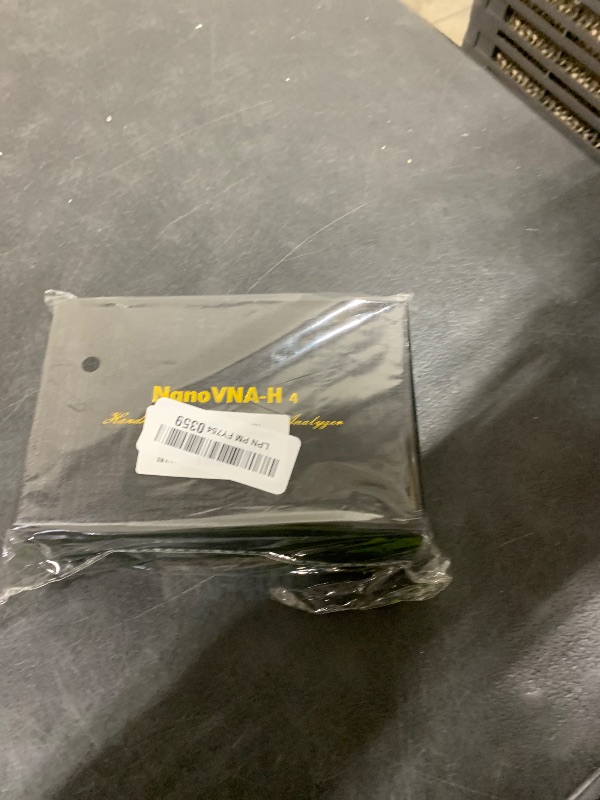

AURSINC NanoVNA-H4 Vector Network Analyzer with 32GB Card, Latest V4.4 9KHz-1.5GHz 4" Touchscreen Nano VNA Antenna Analyzer Ham Radio, HF VHF UHF Measuring S Parameters, SWR, Phase, Delay, Smith Chart

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• [NEW ADDON] The built-in SD card slot and the 32GB micro card have solved the issue with saving on-site data; you can directly record data to the card, which is convenient for your data sharing and storage. Take the NanoVNA-H4 anywhere, anytime for on-the-go testing
• [UPGRADED NANAOVNA H4 HW V4.4] Equipped with the latest HW 4.4 version, the NanoVNA H4 Vector Network Analyzer is a Hugen Original. It delivers reliable vector network measurement capabilities, features a compact handheld design, operates as a stand-alone device with a 4-inch LCD display, and is portable—supporting power supply via a 1950mAh battery or USB
• [IMPROVED FREQUENCY ALGORITHM] The improved frequency algorithm of the NanoVNA-H4 utilizes the odd harmonic extension of the SI5351 to support a maximum measurement frequency of 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, the extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics
• [ANTENNA PERFORMANCE MEASUREMENT] The default firmware's main function of the NanoVNA-H4 is designed for antenna performance measurement. Using the TX/RX method, you can measure the complete S11 and S21 parameters. If you need to obtain the S12 and S22 parameters, you will need to manually rewire the transceiver ports
• [PC CONTROL] Using the PC software NanoVNASaver, the NanoVNA-H4 antenna analyzer can connect to a computer, extract data for on-screen display, and save it to Touchstone files. You can also export Touchstone (SNP) files through the software, which are compatible with various radio design and simulation software
• [WHAT ARE INCLUDED] 1x NanoVNA-H4 host (with 1950mAh battery), 1x 32GB Micro SD card, 4pcs SMA male calibration kit (open/short/load/SMA female to female connector), 2x 16cm/6.3inch SMA male to male RG174 RF cable, 1x USB Type-C data cable, 1x Type-C to Type-C cable, 1x Lanyard with stylus, 1x stylus pen, 1x User Manual
