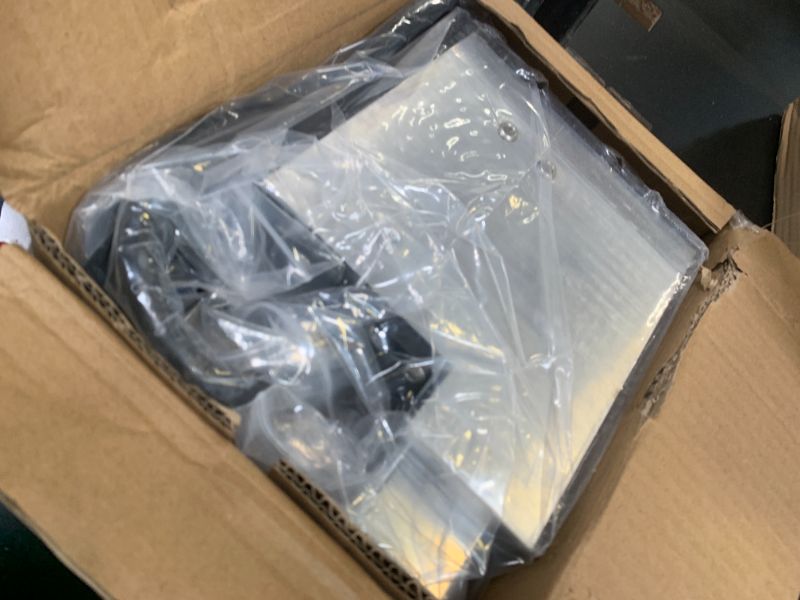

7050 Electric Tilt and Trim Actuator Replacement Parts Kit Fit For CMC T-H Marine Power Lift Hydraulic Jack Plates, For CMC Atlas Power Tilt & Trim Units PL-65, PT-130

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• WIDE APPLICATION: This 7050 tilt and trim actuator is designed for outboard motors rated up to 130 HP and smaller motors. Fit for CMC Power-Lift hydraulic jack plates models: 61001, 61002, 65001, 65002, 65501, 65502. Fit for T-H Marine Hydro-Jacker hydraulic jack plates models: HYJ-6C-DP, HYJ-10C-DP. Fit for CMC Power Tilt & Trim Units PT-130 models: 13001, 13002, and for ATLAS Tilt & Trim Units models: THT-130C-DP. (Not for high speed versions of hydraulic jack plates)
• HEAVY-DUTY ELECTRIC HYDRAULIC ACTUATOR: The 7050 hydraulic jack plate actuator boasts a fully self-contained design, integrating the pump, motor, fluid reservoir, and cylinder all into a single, compact body. This innovative design eliminates the need for additional hydraulic components such as hoses, external pumps, and separate cylinders, greatly simplifying installation and reducing the risk of leaks or component failure.
• POWERFUL AND EFFICIENT PERFORMANCE: With a permanent magnet 12V DC motor, this 7050 tilt and trim actuator delivers robust lifting force. It provides a minimum of 5,000 lbs of thrust during extension and 3,750 lbs during retraction. The unit features a 5-inch stroke length and a rapid rate of travel of 15 inches per minute, ensuring your engine or jack plate adjusts quickly and smoothly for optimal boat performance.
• DURABLE CONSTRUCTION & STABILITY: Engineered for durability in the demanding marine conditions, this 7050 tilt and trim actuator is built with a 6061-T6 aluminum alloy body and features 18-8 stainless steel fasteners. It is constructed from non-ferrous materials, making it fully submersible and highly resistant to rust and corrosion. The heavy-duty design includes a no-leak seal and wiper system that effectively keeps dirt, debris, and water out of the working parts, ensuring long-lasting, reliable performance in almost any type of conditions.
• NEW REPLACEMENT PART: It is the better replacement part if your existing jack plate or tilt & trim unit fails to go up or down, as the hydraulic actuator is often the root cause of such issues, restoring your marine equipment to optimal working condition. Fits for ATLAS Tilt & Trims, for T-H Hydro-Jacker hydraulic plates and for CMC Tilt & Trims and Power-Lift hydraulic plates all late models that have the onepiece motor/hydraulic actuator assembly.
