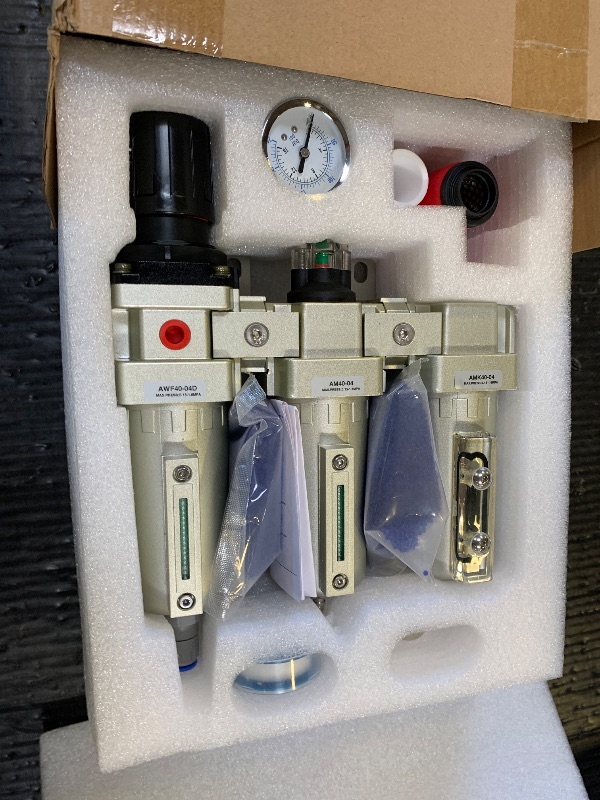

3/4" Npt Industrial Grade 3 Stage Air Drying System, Auto Drain Air Dryer for Compressor with Water Separator, 5-Micron& 0.01 Micron Filters, for Plasma Cutter and Paint Spray

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【Superior pressure resistance and high flow rate】: A 3/4" NPT connector + 1/4" NPT gauge connector supports pressures up to 240 PSI, with an operating pressure range of 30–175 PSI. The air drying system boasts a stable flow rate of up to 141 CFM (4000 L/min), making it ideal for industrial compressors and pneumatic tools.
• 【Three-stage air compressor dryer system】: Stage 1: A 5-micron water separator removes 95% of moisture and particles; Stage 2: A 0.01-micron coalescing filter removes 99.98% of oil and residual moisture; Stage 3: Deep purification using desiccant ensures thoroughly dried air. Each stage is equipped with a metal cup and viewing window.
• 【Intelligent maintenance and safety】: An automatic red light illuminates when the air drying system needs replacement; the desiccant beads change from blue to powder, indicating the replacement cycle; modular design allows for quick assembly and disassembly without tools; an automatic drainage system minimizes manual intervention.
• 【High-precision pressure control】: The air drying system features a built-in military-grade pressure regulator, providing precise and stable output pressure, eliminating equipment malfunctions caused by pressure fluctuations, and ensuring the continuous and safe operation of high-pressure equipment.
• 【Complete set of accessories】: 2 x 5-micron filter cartridges (1 pre-installed) + 2 x 0.01-micron filter cartridges (1 pre-installed) + 4 desiccant packets (100g/packet) + 2 x 3/4-inch NPT connectors + threaded sealing tape, significantly reducing subsequent operating costs.
