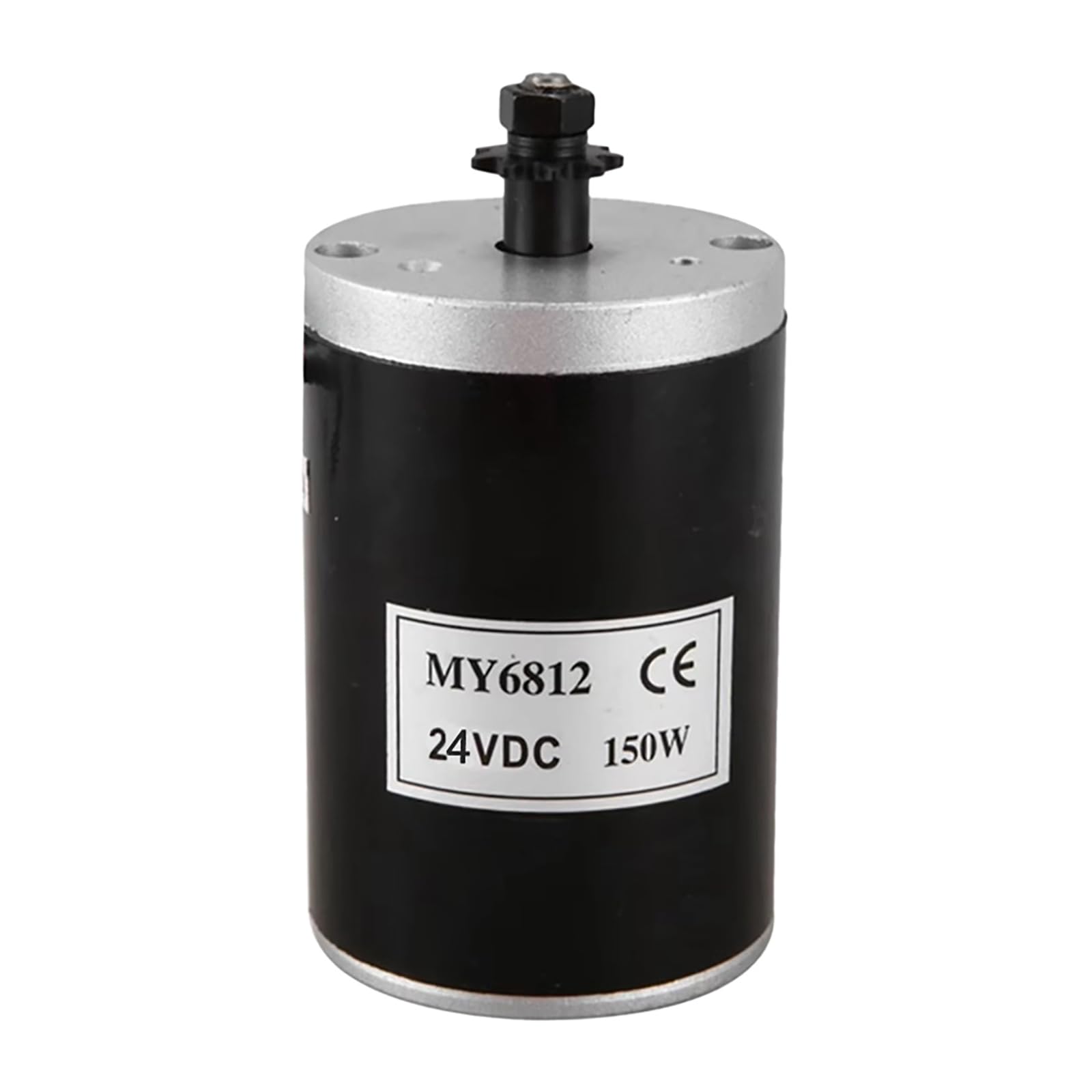

24V 150W Electric Scooter Motor with 7 Tooth 25H Chain Sprocket MY6812 Electric Brushed Motor High Speed Small Brush DC Motor for Razor E100 Scooter Electric Dirt Bike MX125 Motor Replacement Upgrade

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【24V Electric Scooter Motor Spec.】This 24 volt 150 watt electric motor comes with a 7 teeth 25H chain sprocket for chain drive. Model: MY6812 24v, DC brush electric motor rated speed: 2750rpm, rated torque: 0.52N.m, rated current: ≤7.15A. Brushed motor case length: 4.4″(112mm),diameter: 2.7″(68mm), drive shaft length: 0.9″(24mm),drive shaft diameter:0.3″(8mm), razor mx125 motor mounting hole distance:1.4″(36mm),mounting screw hole: M5
• 【High Speed Small Brush Motor Performance】This 150w electric brushed motor boasts an operational efficiency of ≥78%,minimal energy loss.The electric dirt bike motor start quickly and accelerate smoothly due to razor mx125 24v motor high rotational speed and high torque,allowing riders to tackle challenging road conditions.With this razor mx125 upgrade kit, riding becomes more fun.
• 【Reliable Mini Electric Bike Brush Motor】The razor scooter electric motor is crafted from high-quality metal and aluminum alloy. This 24v e100 motor 7 teeth comes with an 8mm shaft diameter, and is robust, durable and wear-resistant.The housing of the scooter motor 150w offers excellent heat dissipation, which prolongs the service life of the razor e100 motor
• 【Wide Application Brushed Electric Motor】You can use this razor scooter motor 24v 150w to replace an old one or self modification. Our electric scooter motor engine is widely used in razor E100,E125, E150,E175,razor MX125 dirt bike,eSpark,Trikke, Dynacraft (Hello Kitty SU E-Scooter), Pulse (Charger, EM-1000, Reverb, and Revster),small electric motorcycle,robot,R2-D2 build and DIY bike
• 【CW/CCW Rotation Razor Dirt Bike Motor】This 24v 150w dc motor is capable of rotation in either the clockwise or counterclockwise direction by reversing this e100 scooter motor power wires, providing flexibility to meet a variety of usage needs.This chain-drive e100 motor will not work on Razor e100 series scooters that are belt-driven
