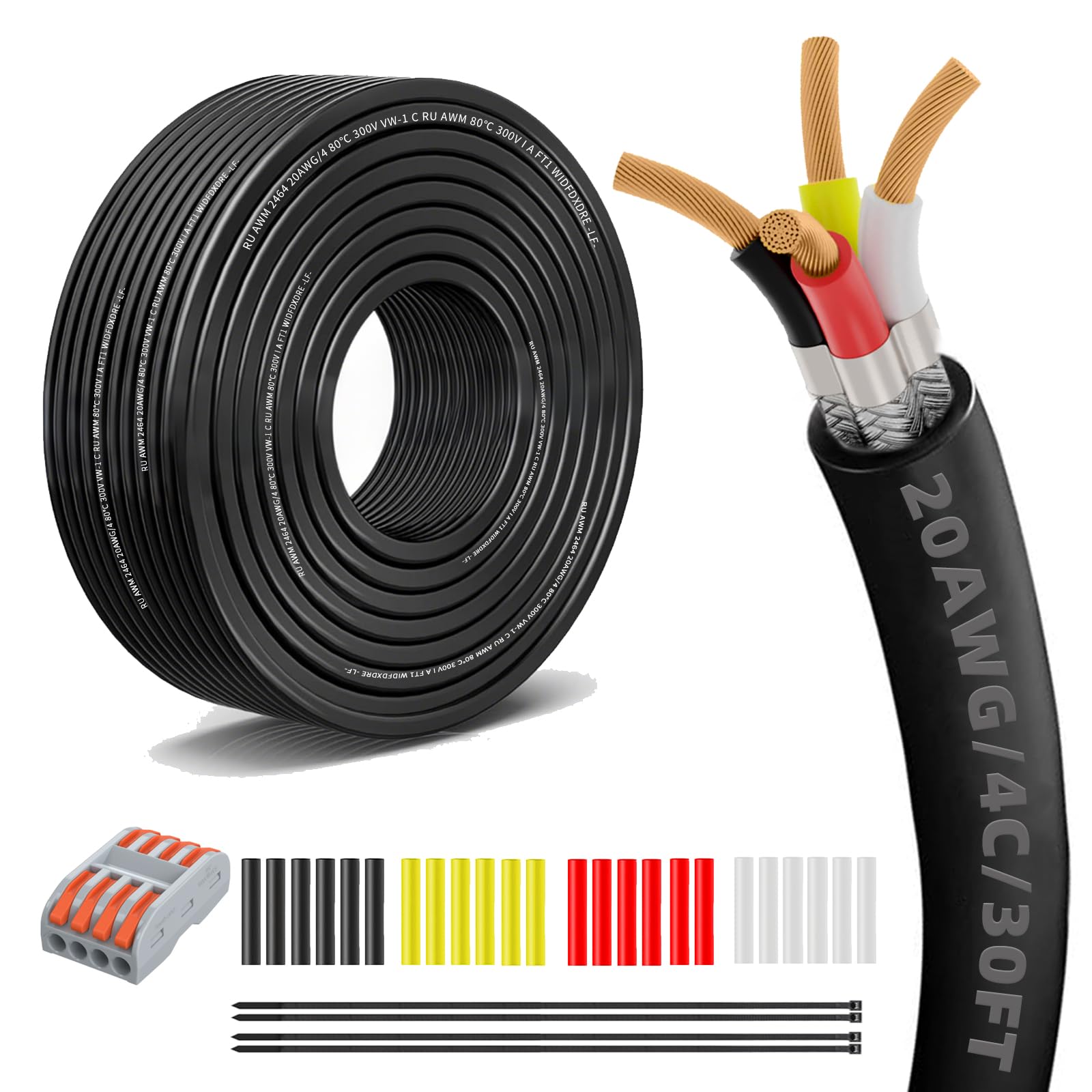

20 Gauge 100% Pure Copper 4 Conductor Flexible Shielded Wire 30FT, UL2464 20AWG 4 Core EMI/RFI Shielding Shielded Cable for Automotive, 3D Printer,CNC VFD Spindle, Stepper Motor, Sound, Speaker

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【Specification】: 30FT 20AWG 4 conductor shielded wire. Rated voltage: 300V.Rated temperature : 80℃/176℉. Cond.resistance: 37.4MAX ohms/km at 20℃, Insulation resistance: >10MΩ/KM20℃, Electric current: 3A. Flame test: FT1, Tensile strength: 1034N/cm2, Material:PVC+Copper+Aluminum.
• 【Superior Conductivity】 : There are 29 strands of 0.15mm pure copper wires inside of each conductor. The conductors are made with 100% pure oxygen-free copper for minimal resistance and maximum signal transmission, outperforming tinned copper or copper-clad aluminum materials. Shielded layers also serve as grounding protection.
• 【Double Shielding Layer】 : Aluminum foil + braided copper blocks 99% EMI/RFI interference, ideal for sensitive electronics, Industrial Equipment and automotive systems.
• 【Real 20AWG & Exact Wire Length】: Our conductor OD is 0.94mm that beyonds UL standard of OD 0.812mm, Insulation OD 1.60mm±0.05mm, Insulation minimum average thickness 0.32mm,outer jacket OD 6.1mm±0.3mm . We guarantee that the our wire length is exact same as we described.
• 【Easy to solder and strip off 】: This pure copper shielded wire ensures effortless soldering and smooth stripping, designed for quick and reliable connections in demanding electrical applications.
• 【Easy Installation】: The wire flexibility endures repeated bending and twisting, adapts to complex spatial layouts.
• 【Additonally accessories】: In this package, we offer additionally 24 pcs heat shrink tubes, 4 pcs zip ties and 1pc quick wiring connectors for your convenience.
• 【Wide Compatibility】 : Perfect for car dashboard modification, 3D printers, security and alarm systems, CNC spindle, stepper motor, sound, home speaker and theaters, signal transmission,etc. UL certified for safety compliance.
