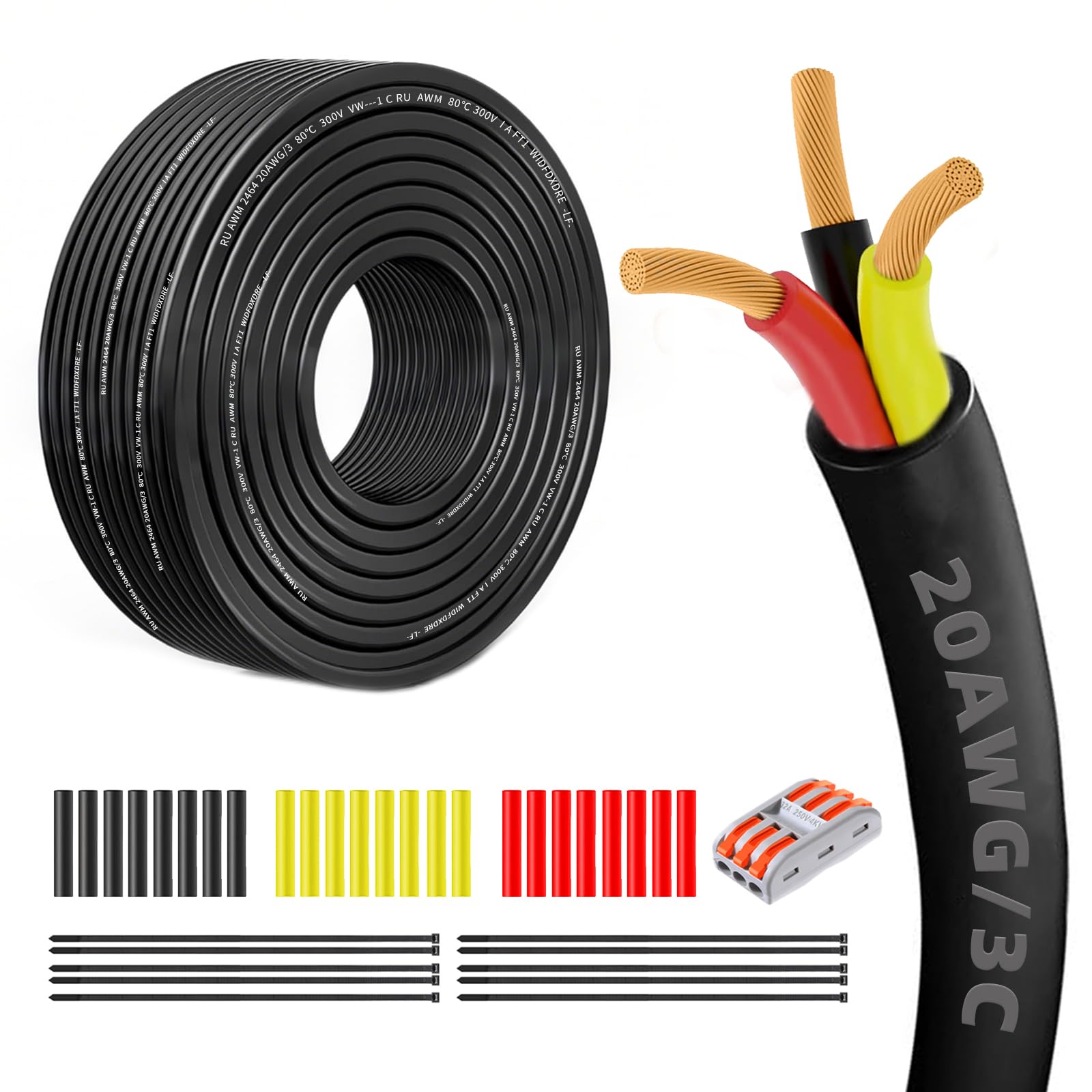

20 Gauge 100% Pure Copper 3 Conductor 20/3 Flexible Low Voltage 12 Volt Electrical Wire 50FT, UL2464 20AWG 3 Core Electrical Cable for Automotive, Marine,Boat,LED Lighting, Garden Lighting,etc

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• 【Specification】: 50FT 20AWG 3 conductor electrical wire. Rated voltage: 300V(also work under low voltage 5V/12V/24V).Rated temperature : 80℃/176℉. Cond.resistance: 37.4 MAX ohms/km at 20℃, Insulation resistance: >10MΩ/KM20℃, Electric current: 3A. Flame test: FT1, Tensile strength: 1034N/cm2. Waterproof level: IP68.
• 【Superior Conductivity】 :There are 29 strands of 0.15mm pure copper wires inside of each conductor. The conductors are made with 100% pure oxygen-free copper for minimal resistance and maximum signal transmission, outperforming tinned copper or copper-clad aluminum materials.
• 【Real 20AWG & Exact Wire Length】: Our conductor OD is 0.94mm that beyonds UL standard of 20AWG OD 0.812mm, Insulation OD 1.6mm±0.05mm, Insulation minimum average thickness 0.32mm,outer jacket OD 5.6mm±0.2mm . We guarantee that the our wire length is exact same as we described.
• 【Easy to solder and strip off 】: This pure copper wire ensures effortless soldering and smooth stripping, designed for quick and reliable connections in demanding electrical applications.
• 【Easy Installation】: The wire flexibility endures repeated bending and twisting, adapts to complex spatial layouts.
• 【Additonally accessories】: In this package, we offer additionally 24 pcs heat shrink tubes, 10 pcs zip ties and 1 pc quick wiring connectors for your convenience.
• 【Wide Compatibility】 : Perfect for automotive,trailer, marine, electronic appliance ,speaker ,audio, LED lighting, landscape lighting,gardening lighting, etc. UL certified for safety compliance.
