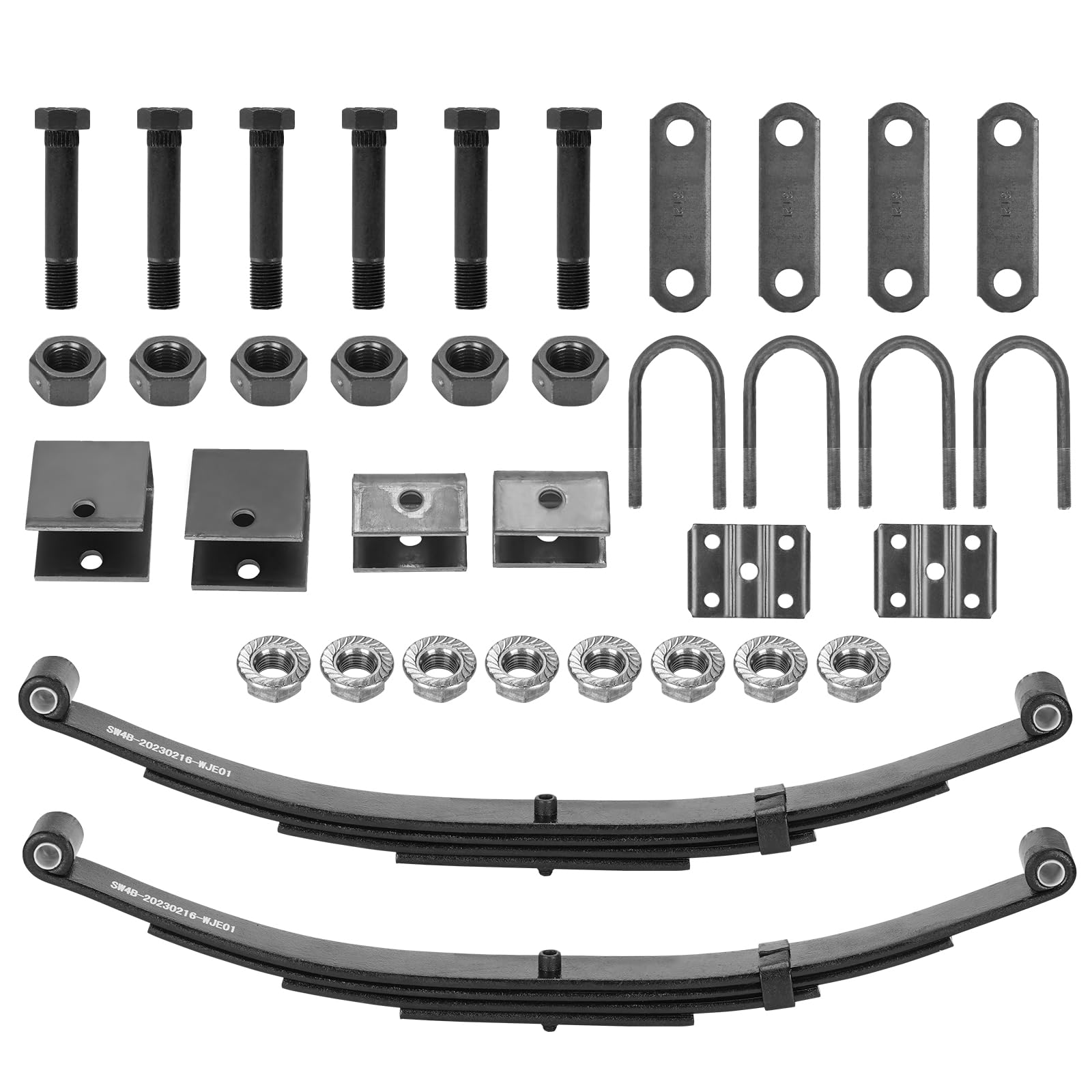

2 Pieces of Replacement for SW4B 4 Leaf Trailer Spring, 3500lb Single Trailer Axle Suspension Kit with 1750lb Capacity Double Eyes Leaf Springs, U-Bolt and Hanger Kit

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• About The Springs: Each spring offer 1,750lbs capacity, suit for standard 3,500lbs trailer axle. Eye to Eye length: 25-1/4 inch, Free open: 3 inch, width of leaf: 1-3/4 inch, 4 leaves, 9/16 inch bushing dia, 2 Bushings Installed for Each Spring, Leaf Thickness 5/16. NOTE: The nut should be tightened horizontally. Failure to do so will affect the final user experience.
• About The Replacement and Material: It will replace for SW4B. The Leaf Springs Made of Heavy Duty Carbon Steel for transmission stability and friction damping; Extra added anti-rust coating for corrosion resistance and long-lasting performance.
• About the axle U-bolt kit: This kit include 4 x 5-1/2" long U bolts, U-bolt thread diameter is 1/2",the curvature (inside diameter) of the U-bolt is 2 4/9"; 2 x tie plates for 1-3/4" leaf springs; 8 x 1/2"-20 hex nuts. And this kit used for 2-3/8" dia round trailer axles.
• About the trailer axle hanger kit: This kit include 2 x 3" tall hangers, 2 x 2.1" tall hangers, 4 x shackle straps (eye to eye 3.09"), 6 x 9/16"-18 x 3" long shackle bolts and locknuts. And this kit used for 1-3/4" leaf springs
• After-sales service: Any questions after receiving, please contact us freely. Thanks for choosing us!
