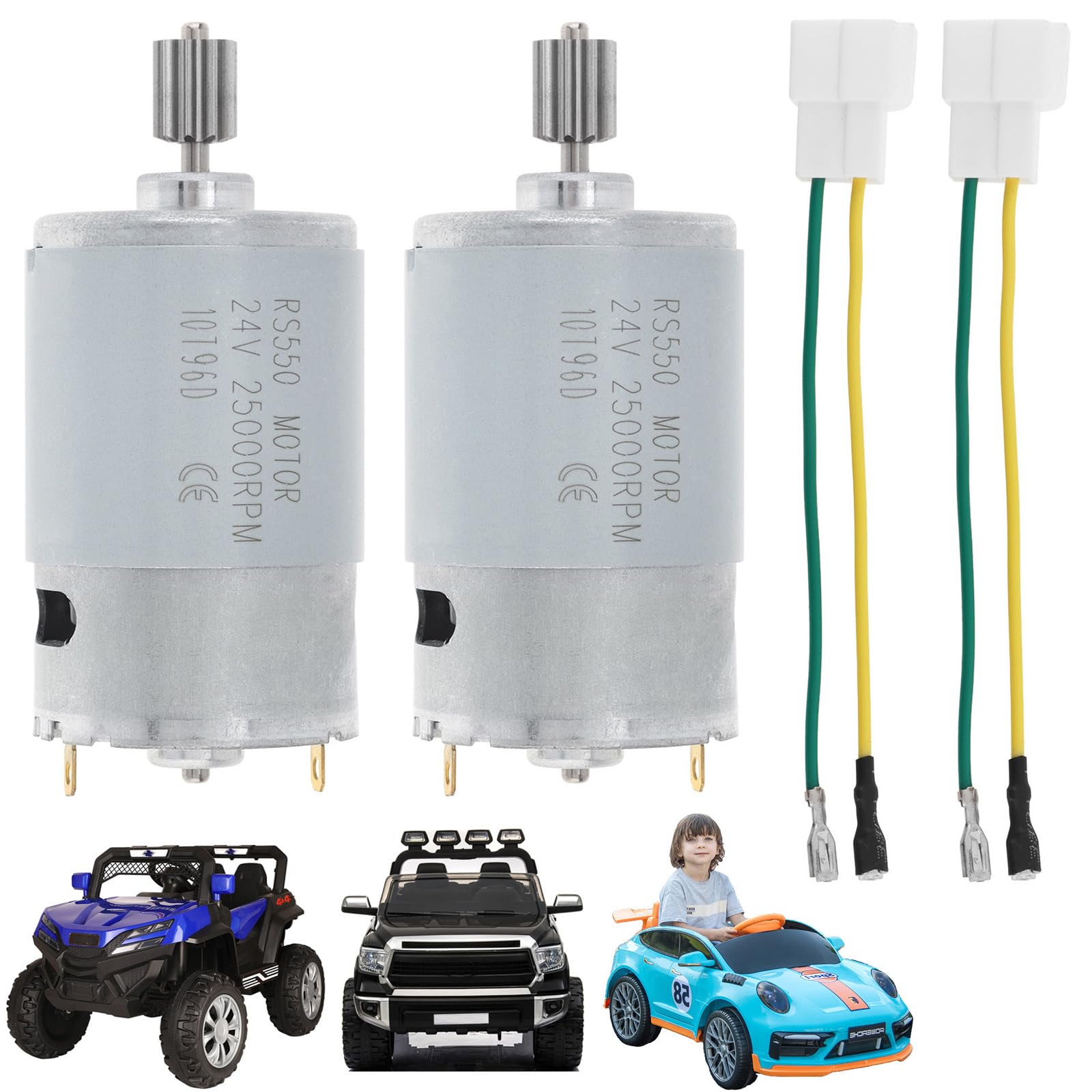

2-Pack RS550 DC Motor 10Teeth 24V 25000RPM Electric Motor Drive Engine High Speed Motor Upgrade for Powered Wheels Kids Ride on Toy Car Replacement Parts Accessory (10Teeth)

Model Number: RS550 Voltage: 24V No Load Current: 1.1A Working Current: 6.53A No Load Speed: 25000RPM Torque: 1555.3g.cm Power: 200W Shaft Diameter: 3.175mm Gear Teeth: 8 - 19 Teeth Commutation: Brush Installation Screw Size: M3 (Not included) Installation Screw Spacing: 25mm Rotation Direction: CW/CCW Stall Current: 45A How to choose a motor for electric ride on vehicles: 1. Confirm your motor model is RS550/RS555, or measure motor diameter about 37.2mm, motor body length about 57mm, and shaft total length about 85mm. 2. Confirm the voltage of your motor and choose a motor with the same or similar voltage. 3. Confirm the number of teeth of your motor, make sure to choose the motor with the same number of teeth, and verify that the outer diameter and face width of the gears are the same or similar. Note: 1.The RS550 motor has multi voltage and multi gear teeth combinations, which can be adapted to many electric vehicles on the market, but there are too many brands and models of electric ride on vehicles, which makes it impossible for us to identify them all, so please compare the model and gear of the original motor before purchasing. It must be the same model to replace it(The RS550 and RS555 motors can be used interchangeably.). 2.This motor rated voltage of 24V, and capable of normal operating within a DC voltage range of 12-24V. The lower the input voltage, the lower the motor speed will be. Do not exceed 24V input voltage, otherwise it may be damaged easily. 3.This motor can rotate in forward and reverse directions. If the rotation direction is reversed, simply swap the positive and negative connections to correct it.
