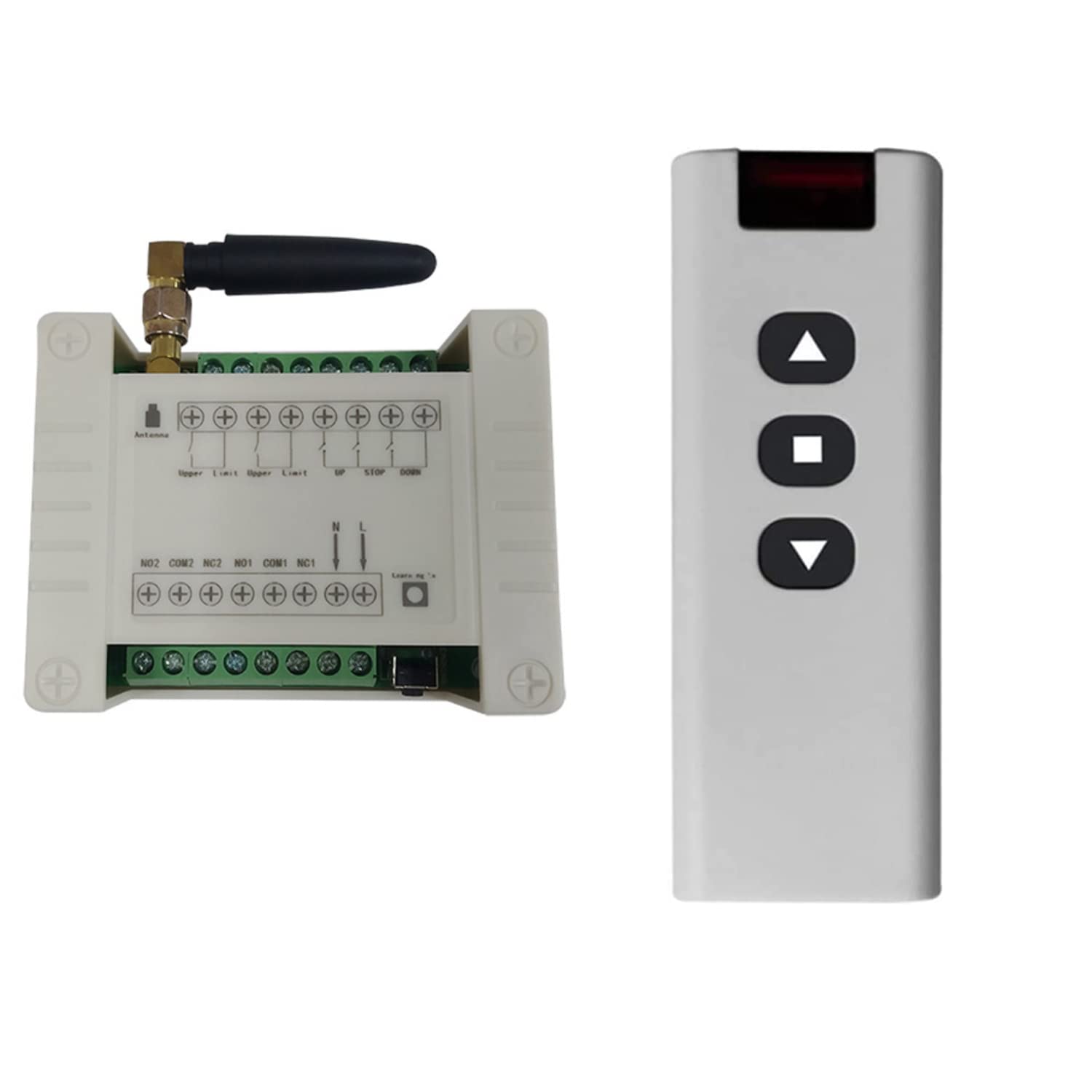

12V 24V 36V 10A Remote Control Motor Forward and Reverse Switch Roller Shutter Door gate Motor Lifter Magnetic Valve Drive Control Remote Control Universal Garage Door for Linear Actuator Motor
12V 24V 36V 10A Remote Control Motor Forward and Reverse Switch Roller Shutter Door gate Motor Lifter Magnetic Valve Drive Control Remote Control Universal Garage Door for Linear Actuator Motor
Description
delivery 1 x receiver 1x remote control with battery (If you need more remotes, please let us know) Before shipment, we have paired the code, you can directly follow the wiring diagram to connect, if you do not know how to connect, you can contact our technicians. We will reply you within 24 hours. Receiver sensitivity: : -105Db Working Voltage : dc12-48V Max Load:10A Relay, have better load less than 5A Working temperature : -10'C - +60'C Output way : Momentary. Toggle. Latched is Adjustable by the Jumper on the Receiver . Receiver Board Size:68*50*19mm Case Size:75*58*15mm Code type :Learning code About Working way Momentary: Press and hold -> On; Release -> Off. Latched: Press -> On; Press other button -> Off. Set control mode Momentary: jumper doesn't connect Latched: jumper in pin L and S. Learning Code : (1) Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up (first button default for forward) ,the learning indicator flash 5 times and OFF,It mean the first button learning Successfully (2) Press the learning button for 2 times,the learning indicator flashes slowly,Then press the transmitter button down (second button default for forward) ,the learning indicator flash 5 times and OFF,It mean the second button learning Successfully (Third button default for stop ,When the jumper set for Latched) Clear code Press the learning button on the receiver for 5s,the learning indicator will flash 3 times and OFF , It mean all the transmitter code in the receiver have been cleared.
Item Details
Seller
Legacy Bids
Pickup Location
3591 John Peter Lee St
North Las Vegas, NV, 89032
Quality
Estimated Retail Price
$14.28
Buyers Premium
15%
Inventory Number
1067974539
Found in
Additional Details from the Manufacturer
This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing
brand
Kaleinavicolor
WhiteMore features
- Wireless control, easy to install. Suitable for DC motor or linear actuator.Input voltage: DC 12V-24V-36V, Suitable for motor, electric hoist, hoist modification, linear actuator, reciprocating motor, suitable for motor remote control forward and reverse rotation, controller,The controller has 2 working modes, you can switch modes according to your needs
- High frequency anti-interference module+Manual button can be added +Limit switch interface+Antenna interface: realize the switch from wired to wireless systems. The product has stable performance, small size and high receiving sensitivity.You can operate the motor to rotate in positive or reversal direction by using the buttons in the receiver or by the transmitter.
- Signal stability and range: remote distance is 300m (in the free field) wireless control, easy to install.RF remote control uses RF technology and stable signal. The signal from the wireless RF switch can be routed to walls, floors and doors, and continuously control the receiver from any position with a reliable distance. The range is about 300m in the open air, it can simply pass through walls and so on. But please note: trees, walls or other obstacles will shorten the range.
- Pairing and testing: Before delivery, our technicians have paired and tested the remote control and receiver. When you receive it, you don't need to perform any other operations, just install it through the Wiring diagram. If you don't know how to connect, please contact us and we will reply to your message as soon as possible. We provide you with 1 year warranty and technical service.
- You can learn multiple remote controls, and multiple remote can control one receiver. No interference: Using digital coding, the products will not interfere with each other in the same environment where multiple groups of products of the same model are used.
