110-326 Gas Water Heater Control Valve, Natural Gas Water Heater Thermostat Built-In Non-Circulating Energy Cut-Off (ECO) System Water Heater Replacement Parts with 1-3/8" Shank

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

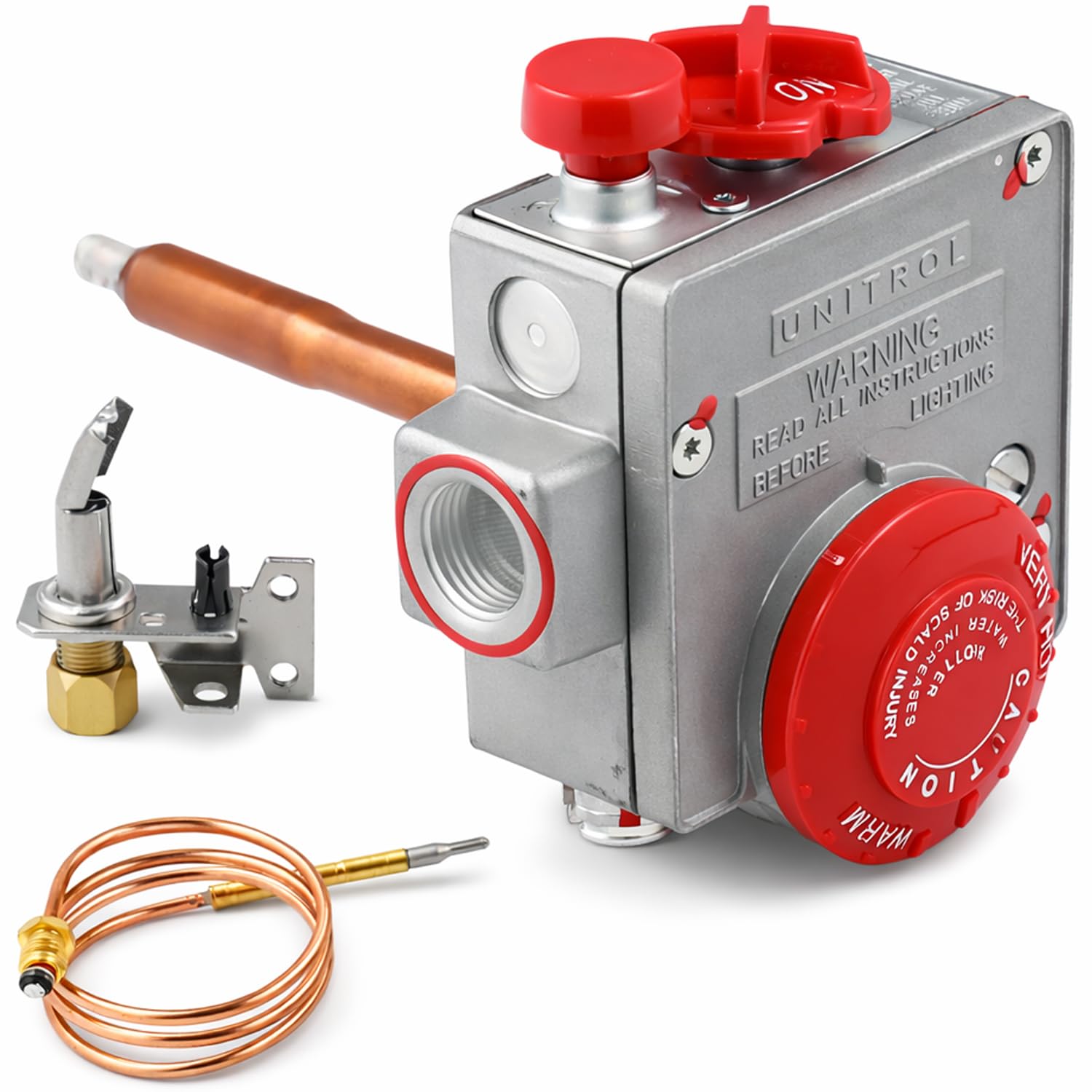

• Product Overview: 110-326 Gas Water Heater Control Valve, Designed For Tank-Type Natural Gas Water Heaters. Provides Mechanical Temperature Control And Gas Flow Regulation For Systems Using Pilot And Thermocouple Ignition. Suitable For Replacement Applications Matching Listed Pressure, Port Sizes, And Temperature Specifications.
• Safety Control With Built-In ECO: All 110-326 Models Feature A Built-In Non-Circulating Energy Cut-Off (ECO) System. The ECO Automatically Shuts Off The Gas Supply When Water Temperature Exceeds 160°F (71°C) To Help Prevent Overheating And Protect The Water Heater System. ECO Activation Permanently Stops Gas Flow And Requires Valve Replacement.
• Detailed Technical Parameters: Maximum Inlet Pressure Up To 50 mbar, With Adjustable Outlet Pressure Range Of 3–18 mbar And Factory Setting At 2.2" W.C. Thermostat Temperature Control Range 30°C–75°C (86°F–167°F). Built-In ECO Shuts Off Gas Supply At 160°F (71°C). Ambient Operating Temperature 0°C–85°C, Rated Gas Flow Capacity Up To 45,000 BTU. For Natural Gas Applications Only, Not Intended For RV Or Mobile Equipment Use. All Parameters Must Match Appliance Requirements.
• Material And Build Quality: Constructed With High-Quality Metal Components And A Precision-Machined Valve Body. Equipped With A Copper Temperature Probe Sensor For Accurate Heat Sensing And Stable Mechanical Operation. Designed For Long-Term Use In Residential Gas Water Heater Systems.
• Port Sizes And Installation Notes: Features A 1/2" Pipe Thread Gas Inlet (Ø 0.84" / 21 mm) And A 1/2" Inverted Flare Gas Outlet (Ø 0.79" / 20 mm), Along With An 11/32"-32 UNS Pilot Outlet (Ø 0.44" / 11 mm). The Thermostat Shank Uses A 3/4" NPT Connection (Ø 1.05" / 26 mm) With A 3.8 Inch Shank Length. Please Verify All Port Sizes And Thread Types Before Installation To Ensure Proper Fit And Safe Operation
