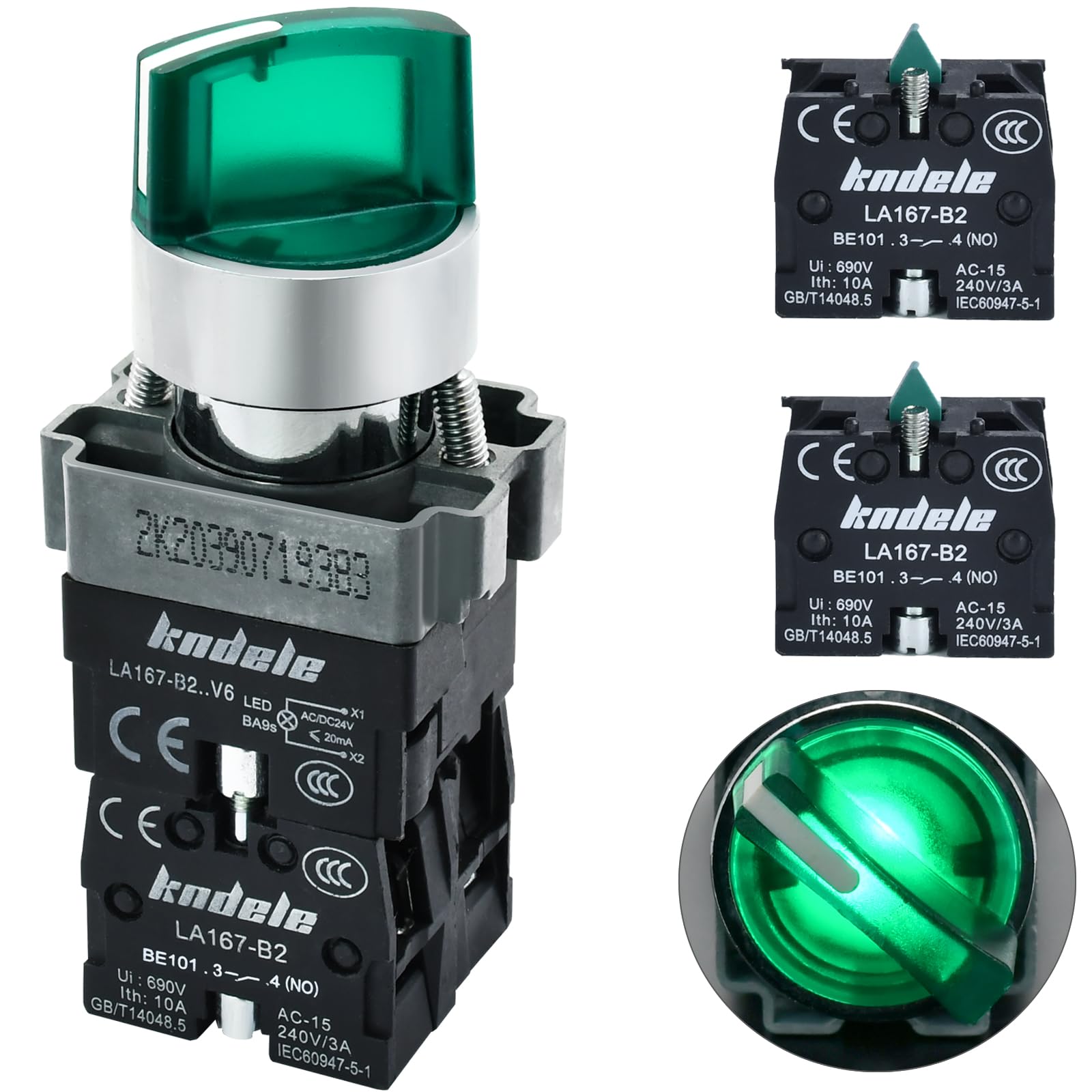

10Amp 3 Position Rotary Switch with Green Light 22mm 7/8in Mounting Hole Selector Switch Maintained DPDT 2NO 2NC Latching Switch 600V AC

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

• GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. This selector switch exquisite workmanship. Turning to the left or right will turn on a green light, while turning off the light in the middle.
• Product name: Brand New 22mm Metal Head 3 Position Selector Switch. This rotary switch on a panel that is no more than about 6 mm thick .The 3 position switch can be fixed by tightening two screws.
• Contact: DPST, 2 Normally Open , Switch Rating: 10Amp 660VAC, 3Amp 240V AC. Green rotating head with 24V Green DC LED light. Screw tightening torque: 0.4N.m
• Mounting Size: 22mm 7/8inch, Operation Type: Maintained (Latching), Size: 29 x 29 x 89.2 mm / 1. 14" x 1. 14" x 3.51" (L*W*H). Mechanical lifespan: over 100,000 cycles, electrical lifespan: over 100,000 cycles.
• Material: Nylon Body, Alum Circuit, Silver Contact, Brass Conductor. Fix the back of the panel with screws. Package Content : 1 Pcs x 3 Position Rotary Switch.Wiring method: spiral press in terminal, wiring capacity: minimum 1x0.5mm ², maximum with or without terminal strips; 2x1.5mm ² or 1x2.5 ² mm.
