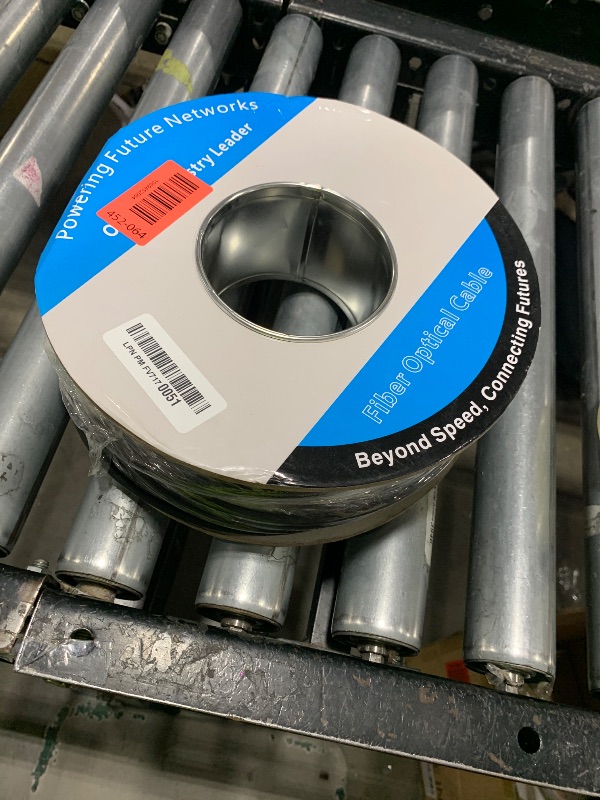

100M/328FT OM3/OM4 LC to LC Outdoor Armored Fiber Optic Patch Cable, Multimode Duplex 50/125?m, 10Gb/40Gb/100Gb, Industrial TPU Jacket, Direct Burial, Uniboot, MMF, OD 5mm, Pulling Eye Kit Installed

The 100m (328ft) LC to LC Outdoor Armored Fiber Optic Patch Cable is purpose-built for high-bandwidth transmission and complex routing in harsh environments. Featuring bend-insensitive OM3/OM4 multimode fiber and dual-layer mechanical protection, it delivers dependable performance in mission-critical deployments such as data centers, telecom rooms, and FTTH networks. Enhanced Engineering Features: - 5mm vs 3mm Durability: The 5.0mm OD cable offers superior crush resistance and tensile strength compared to 3.0mm standard cables, ensuring longer lifespan and stability in industrial or buried installations. - Waterproof & Crush-Resistant: Designed to withstand up to 3000N of crush force and long-term tension of 200N, the cable resists water ingress and external pressure—ideal for underground and conduit environments. - Optimized for Conduit Pulling: With a pre-installed pulling eye, the cable supports secure, damage-free routing through long conduits, floors, risers, and bridge trays—reducing installation time and cost. 5 Key Innovations: - Streamlined Deployment: Unlike conventional jumpers, ERSTICKT’s pre-installed pulling eye cuts labor by up to 40% in complex routes like vertical risers and outdoor conduits. - TPU Jacket Longevity: Industrial TPU outer jacket resists UV, salt fog, and thermal aging—retains flexibility even after 20 years in sun, snow, or coastal humidity. - Double Armor Impact Protection: Built-in stainless steel spiral tube + fiberglass yarns guard against rodent bites and foot traffic pressure. - Eco-Friendly Reusability: Pulling eye is removable and reusable—supports sustainable, low-waste deployments. - Uniboot Flexibility: LC Uniboot duplex connectors allow tool-free polarity reversal, ideal for rack management and modular upgrades. OM3/OM4 Transmission Distances: - OM3: 10Gbps @ 300m, 40Gbps @ 100m - OM4: 10Gbps @ 400m, 40Gbps @ 150m, 100Gbps @ 100m Technical Specifications: - Connector Type: LC to LC (Uniboot, UPC polish) - Fiber Type: OM3/OM4 Multimode, 50/125μm, bend-insensitive - Insertion Loss: ≤0.3dB (≤100m), ≤0.6dB (100–200m), ≤0.9dB (200–300m) - Return Loss: ≥55dB - Outer Jacket: Black industrial-grade TPU, OD 5.0mm - Armor: Stainless steel spiral tube + reinforced fiberglass yarns - Tensile Strength: 200N (long term) / 600N (short term) - Crush Resistance: 2000N/3000N (long/short term) - Operating Temperature: -40°C ~ +80°C - Lengths Available: 5m (16ft) to 300m (984ft) Application Scenarios: - Data center backbone cabling & high-density patching - SAN/NAS fiber interconnects and storage networks - Telecom room fiber runs, ONU/OLT deployments - FTTH/FTTB access and fiber cabinet extensions - 4K/8K IP camera surveillance backhaul - Smart building and campus fiber links - Tunnel, bridge, and railway signaling systems - Industrial control networks, PLC fiber connectivity - Offshore wind farms, substation monitoring - Harsh outdoor sites: coastal, desert, mountaintop Device Compatibility: Compatible with Cisco, Ubiquiti UniFi, Mikrotik, HPE, Juniper, Netgear, TP-Link, Intel, Fortinet, Arista, Supermicro, Huawei, ZTE, and more. Supports SFP, SFP+, QSFP+, QSFP28, and XFP transceivers; routers, switches, ONU/OLT ports, patch panels, NICs, media converters, and DWDM/CWDM equipment. ERSTICKT armored fiber cables are engineered for high-bandwidth, long-distance, and harsh-environment deployments—ensuring performance, reliability, and sustainable installation at scale.
