100A, 240V AC, 60V DC, 1 Pole, DIN Rail Mount Miniature Circuit Breaker, Trip Curve: C, UL1077

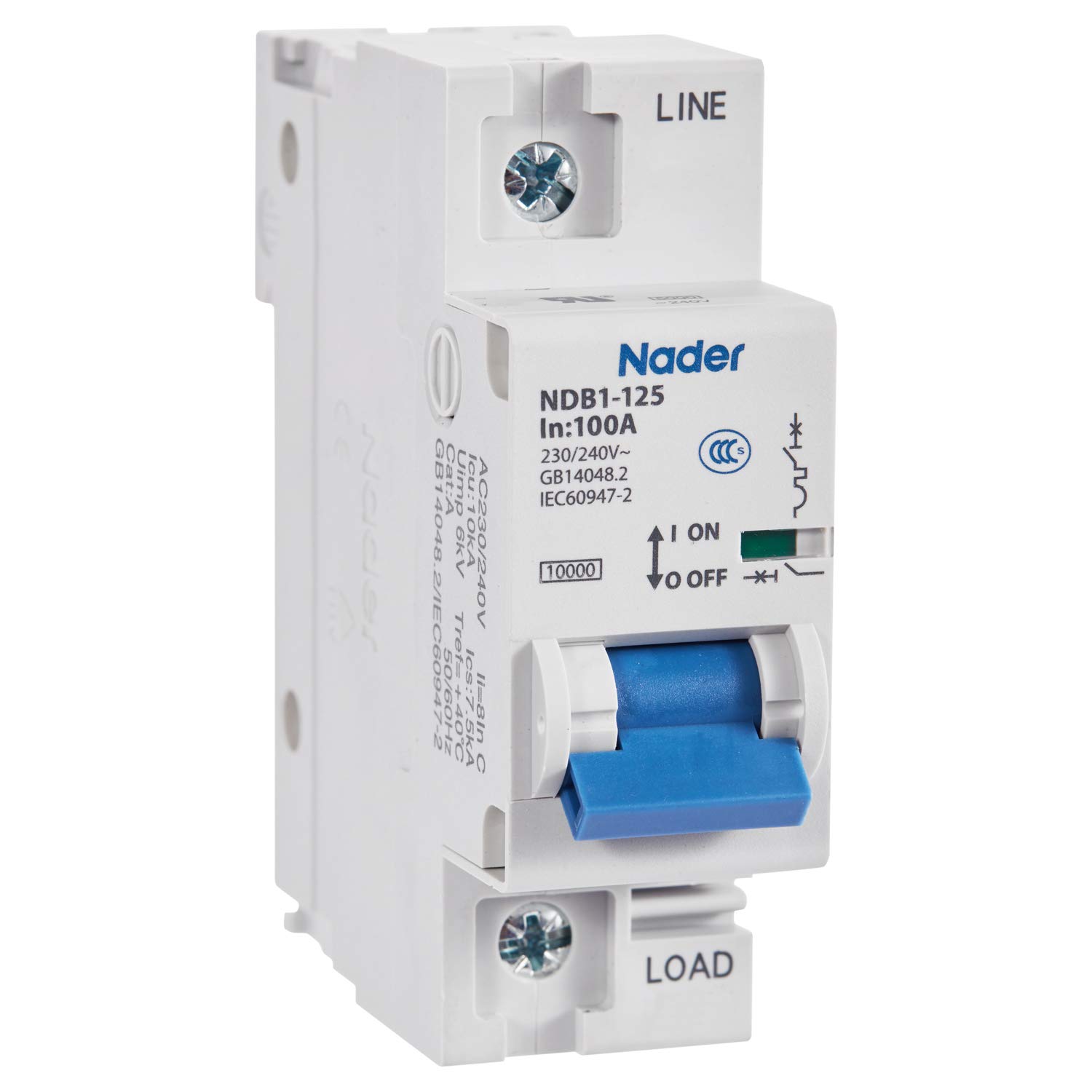

ASI NDB1-125C100-1 100 Amp DIN rail circuit breaker is a high current breaker rated 100 amp at 240 Vac. The UL 1077 supplemental protection circuit breaker is 300% factory tested to guarantee quality and reliability. The circuit breaker features visual trip indication, easy to wire screw clamp connections and mounts on the industry-standard 35 mm DIN rail. The NDB1 series of circuit breakers is up to double the current rating of standard breakers and is meant for high current applications with ratings ranging from 50 to 125 amps at a 10kA interrupt capacity. The circuit breaker has general-purpose C curve trip characteristics which is instantaneous trip 5In to 10In.
