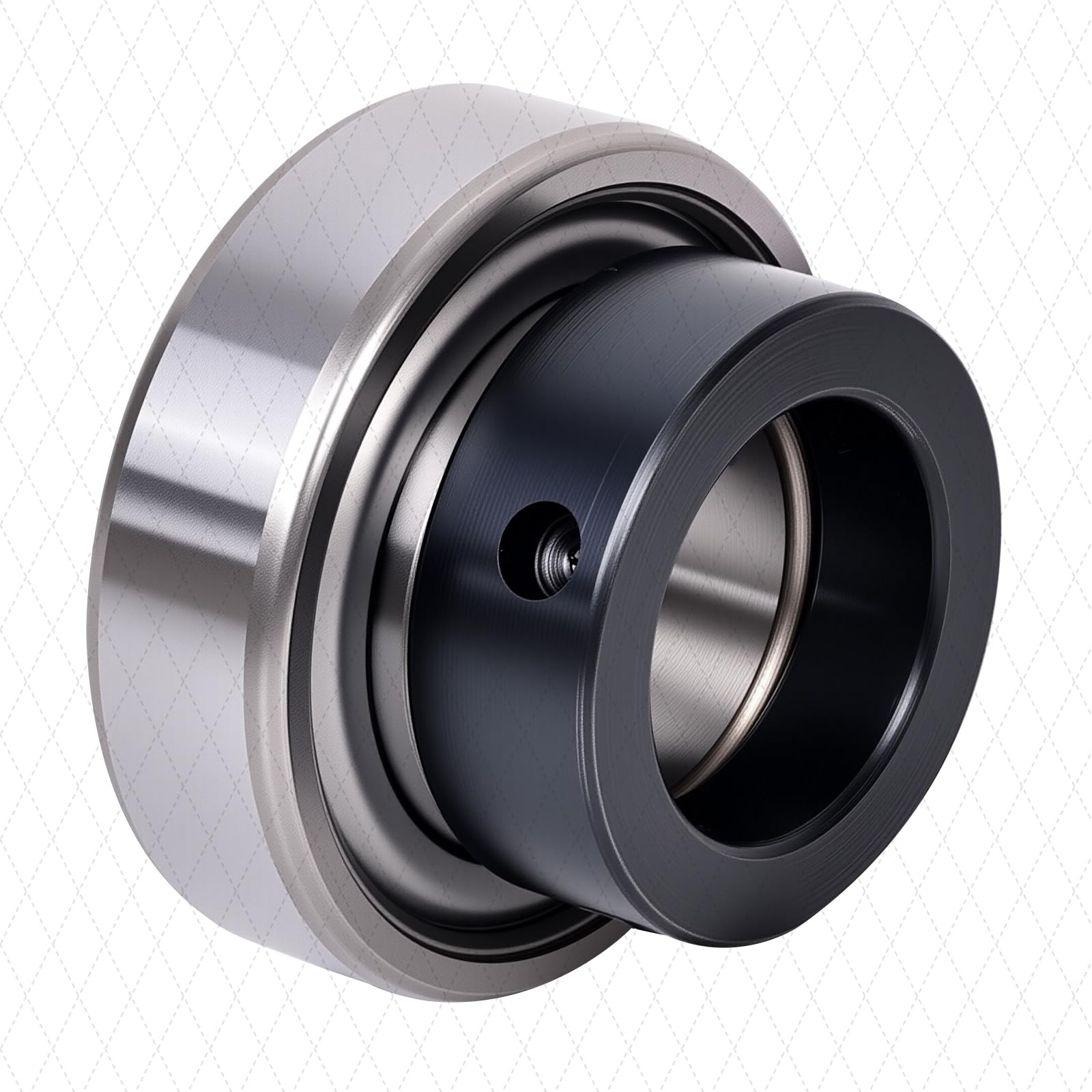

1 Pcs UC206 Radial Insert Ball Bearing, 30mm Bore, Spherical OD, Normal Duty Set Screw Bearing Insert, Lube Hole

The UC206 bearing is a normal-duty ball bearing insert manufactured to C3 precision standards. It uses set screws to secure a 30mm shaft. The UC206 insert bearing has several notable features: a wide inner ring,steel retainer, anti-rotation device, self-aligning, and an inner and outer rings are made from bearing-grade steel to produce a high-quality and long-lasting bearing. When the outer ring is installed in the corresponding housing, the spherical outer surface of the outer ring can compensate for misalignment. The UC200 series bearings are also widely used in industrial applications such as textile machinery, ceramic machinery, plastic machinery, food machinery, chemical machinery. Specifications Part Number: UC206 Product Series: UC200/UCW200 Bearing Type: Ball Bearing Seal Type: Double Sealed Bore Dia: 30 mm Bore Dia Tolerance -0.0005" to 0" Bearing Width: 38.1 mm Height: 40.5 mm Pillow Height: 5 mm Bearings Material: AISI 52100 Steel Dynamic Load Rating: 4385 lbf Static Load Rating: 2540 lbf Temperature Range: -30° to 110 °C Weight: 0.69 lb Be: 19 mm D: 62 mm ds: M6x0.75 mm M: 22.2 mm n: 15.9 mm r: 1.5 mm t: 5.1 mm
