0131M00061SP Condenser Fan Motor 1/4 HP 830RPM 208-230V 1.5A

Additional Details from the Manufacturer

This item information is coming from the manufacturer. Some of the details may vary from the Nellis Auction listing. Please check the Quality Rating and Notes for information specific to this listing

More features

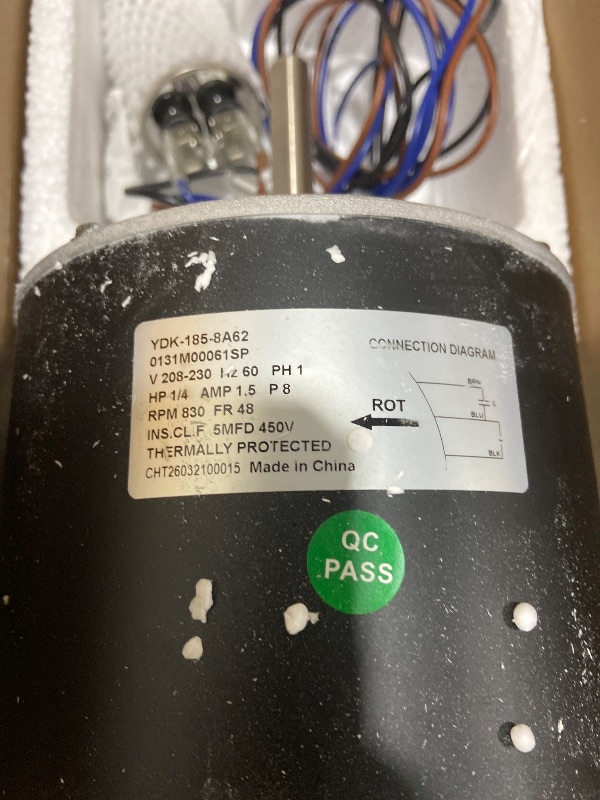

• 【Compatible Models】0131M00061SP condenser fan motor compatible with Goodman models: SSX160481BA, GSC130481AE, GSC130481AF, GSC130481AD, GSC130483AE, GSC130483AD.【***Installation Note】If your existing 0131M00061SP motor features a 4-wire configuration, please refer to the wiring diagram on the motor nameplate before installation to ensure proper wiring and safe operation.When replacing the new motor, please be sure to replace it with a brand-new capacitor at the same time
• 【Replace OE Number】Compatible with Zongshan Broad-Ocean direct replacement motor part numbers: YDK-180S84062-01 and compatible with Goodman, Amana, Janitrol condenser fan motor part numbers: 0131M00061SP, 0131M00014PS

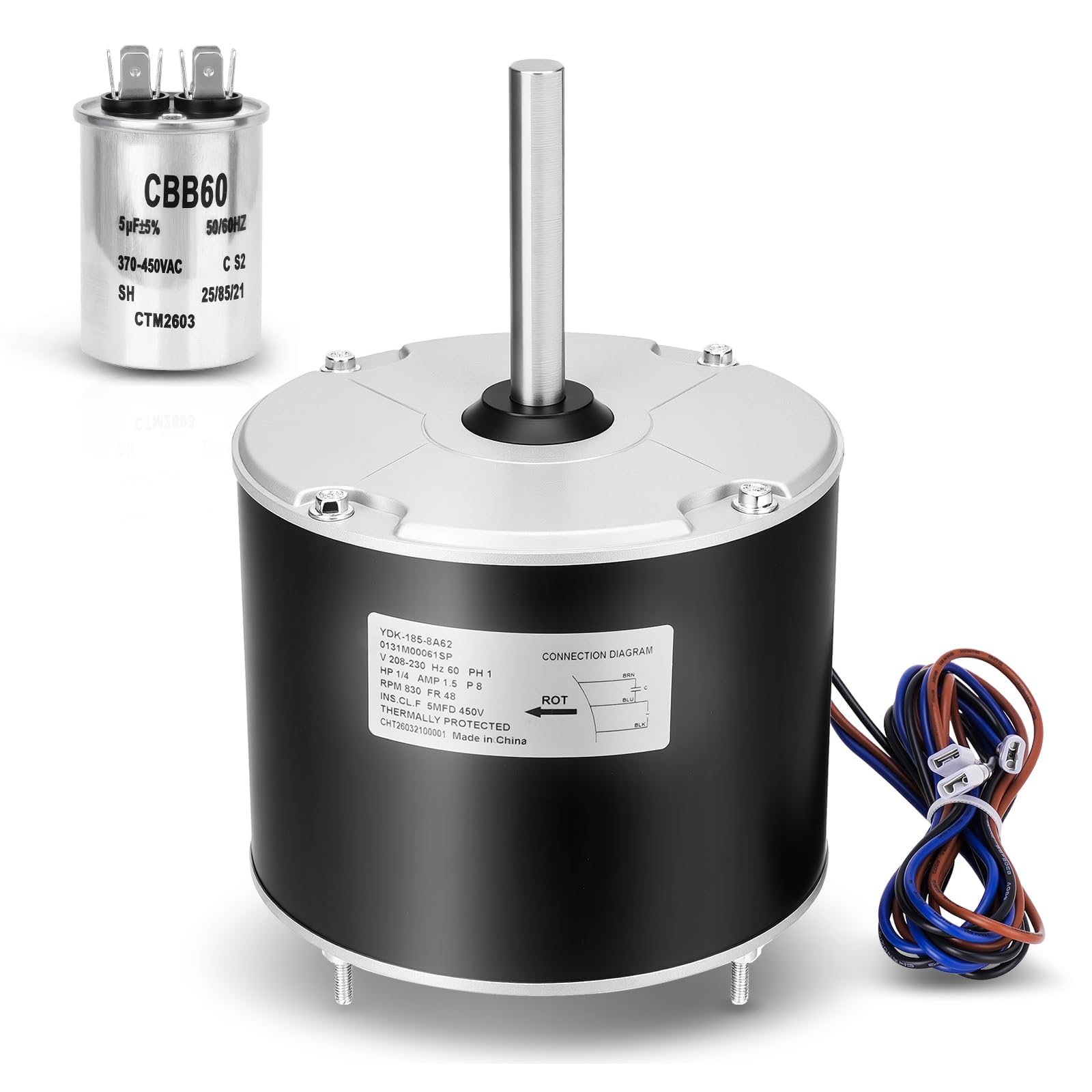

• 【Product Specifications】1/4 HP, 208-230 volts, 1.5 Amps, 60 Hz, 830 RPM, capacitor 5μF/370V (capacitor included).Rotation = CW Shaft End, Shaft Diameter 1/2", Body Diameter 5-5/8"(48 Frame). Equipped with permanently sealed bearings, this motor requires no lubrication and is maintenance-free
• 【Excellent Performance】The 0131M00061SP condenser fan motor features 1/4 HP (186W) output power, ensuring the condenser receives adequate airflow for heat dissipation. It operates reliably even in high-temperature conditions, effectively preventing excessive compressor discharge pressure and overheating shutdown
• 【High-Quality Construction】 Built for long-term reliability, this condenser fan motor features pure copper coil windings for superior conductivity and low heat output. It withstands high temperatures and resists oxidation better than aluminum-wire motors, preventing burnout even with extended use. The durable housing protects against sun, rain, and other harsh outdoor conditions. Built-in overload protection automatically shuts off power when temperature rises abnormally, then resets once cooled
• 【Easy Installation】This YDK-180S84062-01 motor is manufactured to strict OEM standards and undergoes rigorous testing. Featuring a standard 3-wire design with clear wiring logic, it requires no complex speed controls and allows for quick, hassle-free replacement
